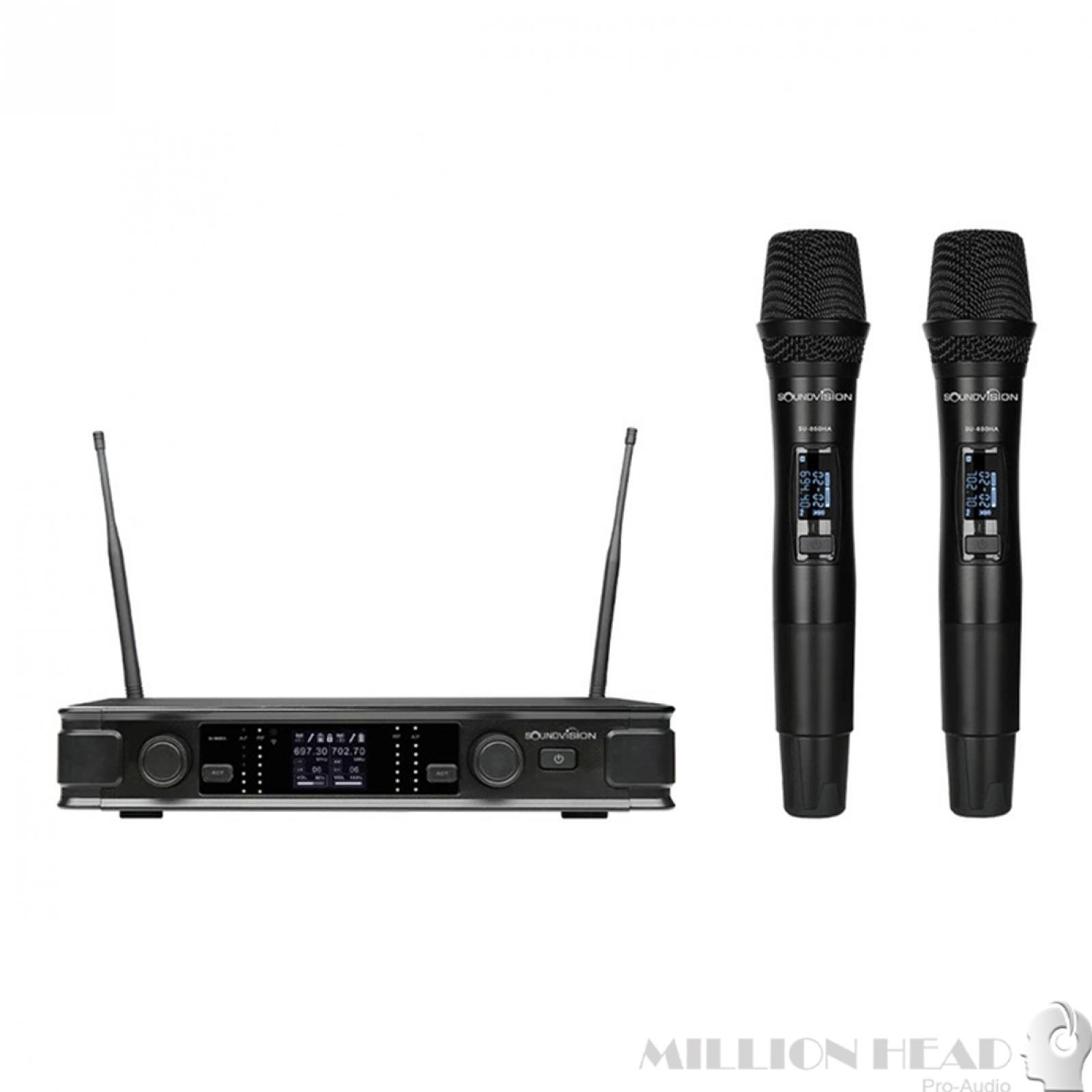

Dual handheld wireless microphones Frequency band UHF 748.3 - 757.7 MHz. Can change channel The signal frequency can be 168 channels.
ไมโครโฟนไร้สายมือถือคู่ ช่วงย่านความถี่ UHF 748.3 - 757.7 MHz ตามข้อกำหนดของกสทช. (ประเทศไทย) สามารถเปลี่ยนช่อง ความถี่สัญญาณได้ 168 ช่อง (2 x 84) กำลังส่ง 10mW รับสัญญาณได้ไกลถึง 60 เมตร (ที่โล่งแจ้ง) ด้วยตัวเครื่องรับสัญญาณ ที่เต็มประสิทธิภาพ ความสามารถในการป้องกันการ รบกวนที่ดีเยี่ยม
Dual handheld wireless microphones Frequency range UHF 748.3 - 757.7 MHz according to the NBTC's requirements. (Thailand) can change the channel. The signal frequency can be 168 channels (2 x 84), transmit power 10mW, receive signal up to 60 meters (outdoor) with the receiver. at full efficiency ability to prevent excellent interference.
Features :
-
Digital UHF 694.4 ~ 702.7 MHz frequency range.
-
Frequency response 30Hz ~ 20kHz ±2dB
-
Pre-Set 168CH (2*84CH) selectable frequencies.
-
TFT display to indicate frequency, battery level, volume level, Channel and Menu Settings.
-
AF / RF signal indicator LED light on receiver.
-
Up to 60 Meters line-of-sight range. / Output power 10mW
-
Auto mute when falling or laid down.
-
Unique digital 16 bits ID pilot technology, no crosstalk disturbance even same frequency.
-
IR sync downloading the frequency from receiver.
-
Wireless system adopts Intelligentized cryptographic hardware.
-
An efficient battery energy design that allows the microphone to be used continuously for longer periods of time.
-
Ideal for large and small stages, clubs music entertainment, conference, meeting, training, speeches and karaoke etc.
Specification :
-
Carrier frequency : UHF 694.4 ~ 702.7MHz
-
Available channels : 168CH (2 x 84CH)
-
Bandwidth : 8.3MHz
-
Dynamic range : 96dB
-
Total harmonic distortion : <0.1%
-
Frequency response : 30Hz ~ 20kHz ±2dB
-
Demodulation mode : DQPSK
-
Sampling rate : 48 KHz
-
Audio output level : 1 x 6.3mm, 2 x XLR balance output
