Allen & Heath : Xone:23C ALLEN&HEATH

High Performance DJ Mixer + Internal Soundcard
หมายเลขสินค้า : Xone:23C

ราคา 26,700.00 บาท

ราคาปกติ : 33,390.00 บาท

ประหยัดไป 6,690.00 บาท



เลือกจำนวน :

เลือกสี : สีดำ

  • สีดำ

  • รับประกันสินค้า

    ฟรี!

    ประกัน 1 ปี

  • ปรึกษาฟรี

    ฟรี!

    ปรึกษาด้านเทคนิก


แชร์ไปยัง :
facebook twitter image อีเมล image

High Performance DJ Mixer + Internal Soundcard

ดีเจมิกเซอร์ 4 Stereo แชนแนล พร้อม 96 kHz 24-bit USB sound card ในตัว และ 3-Band EQ

High Performance DJ Mixer and Soundcard

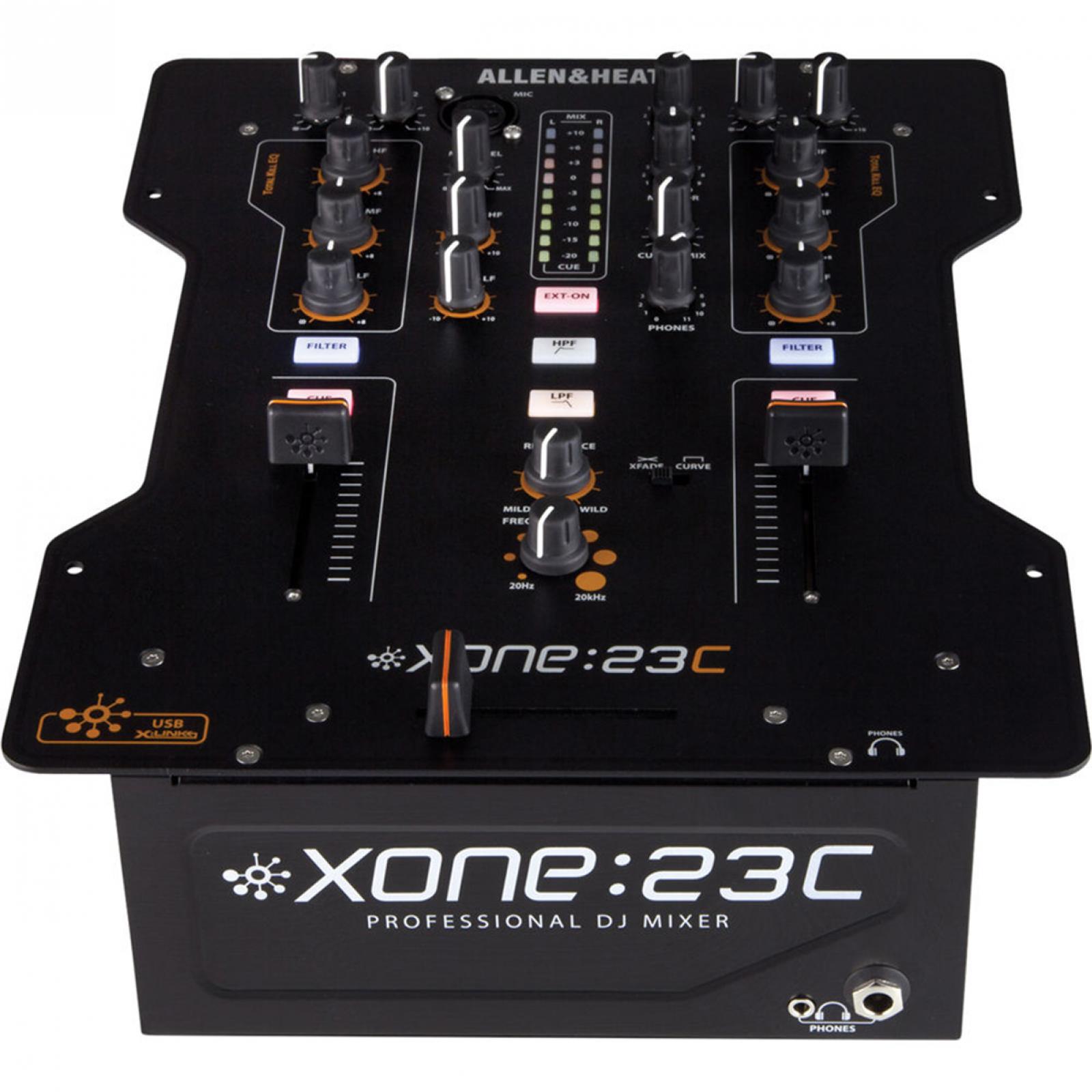

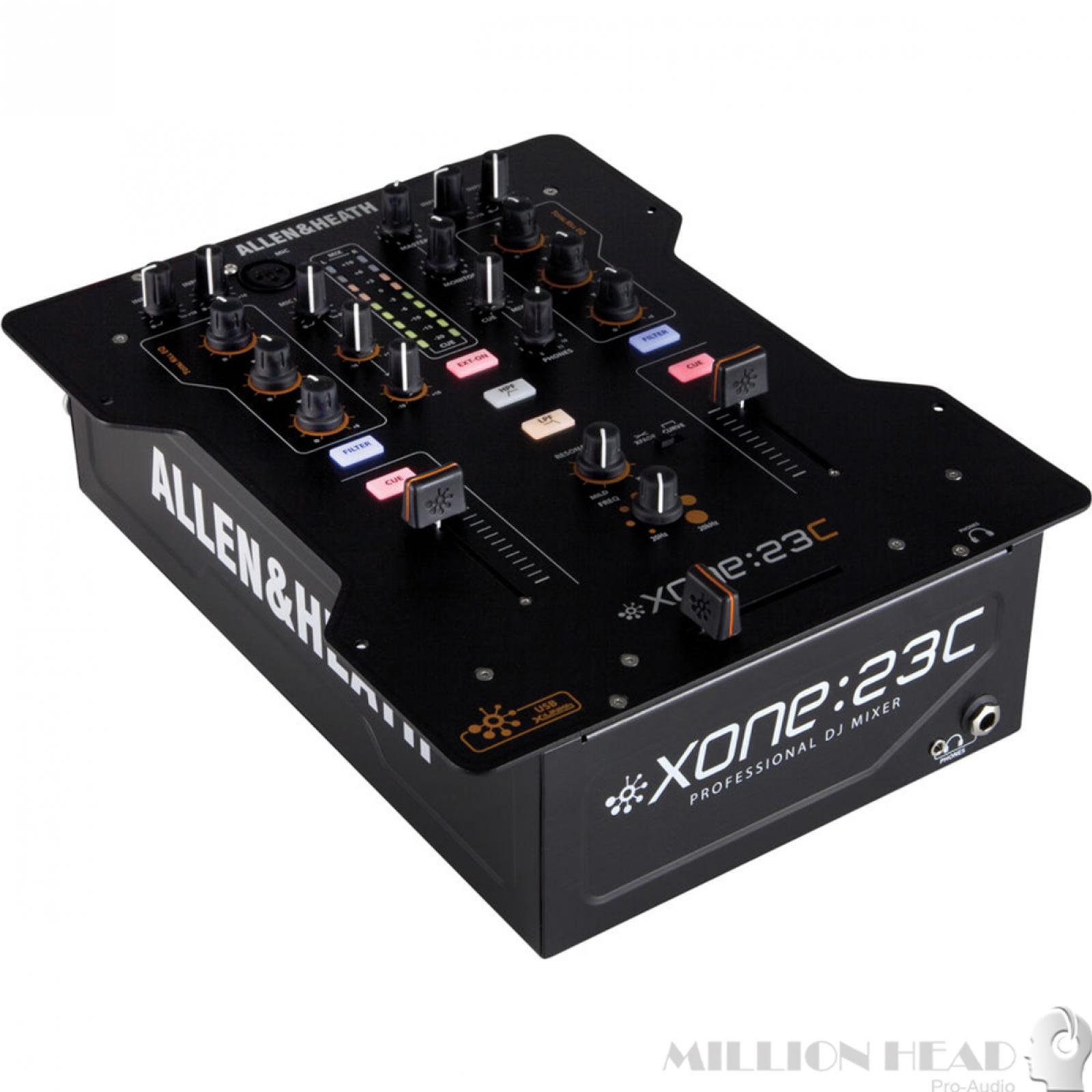

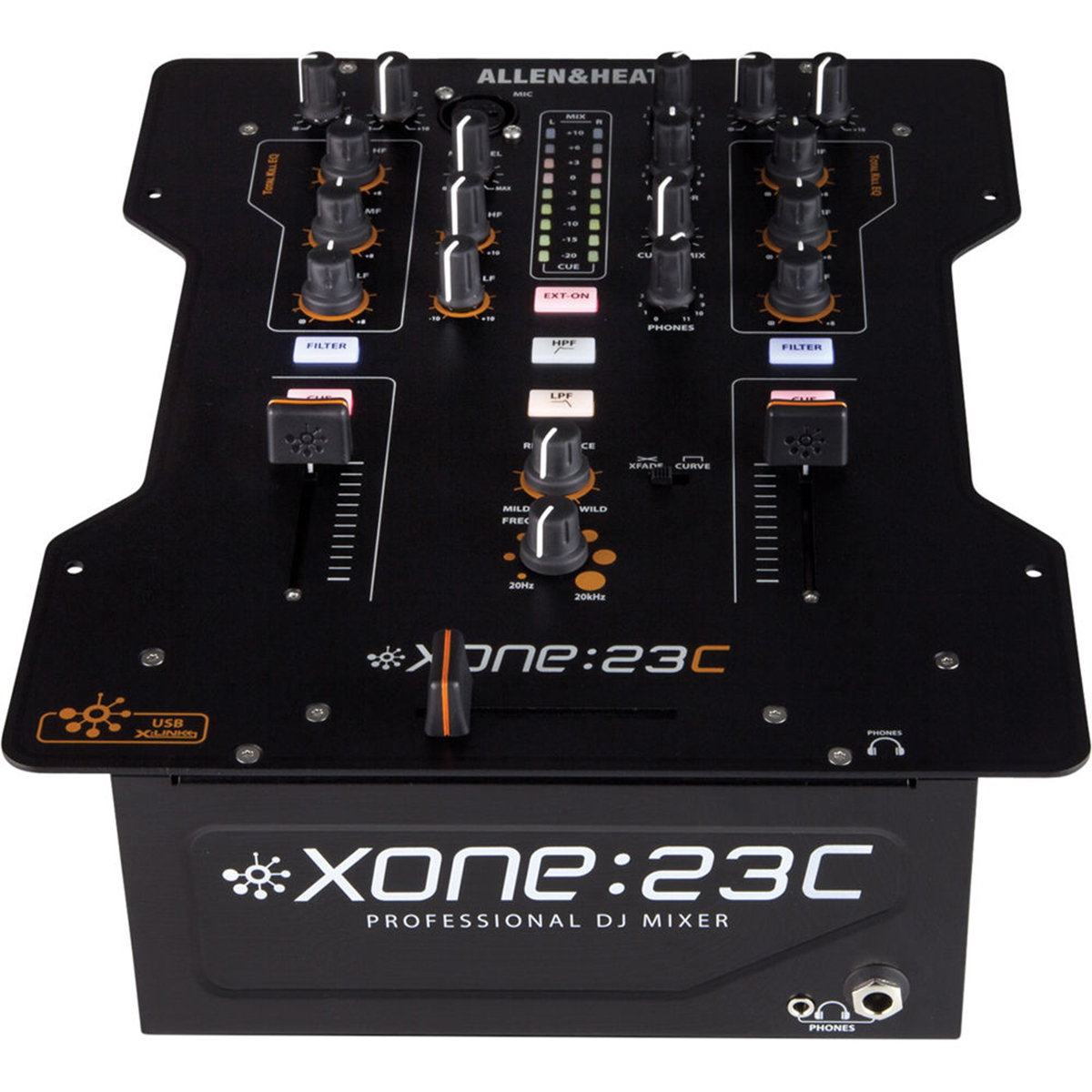

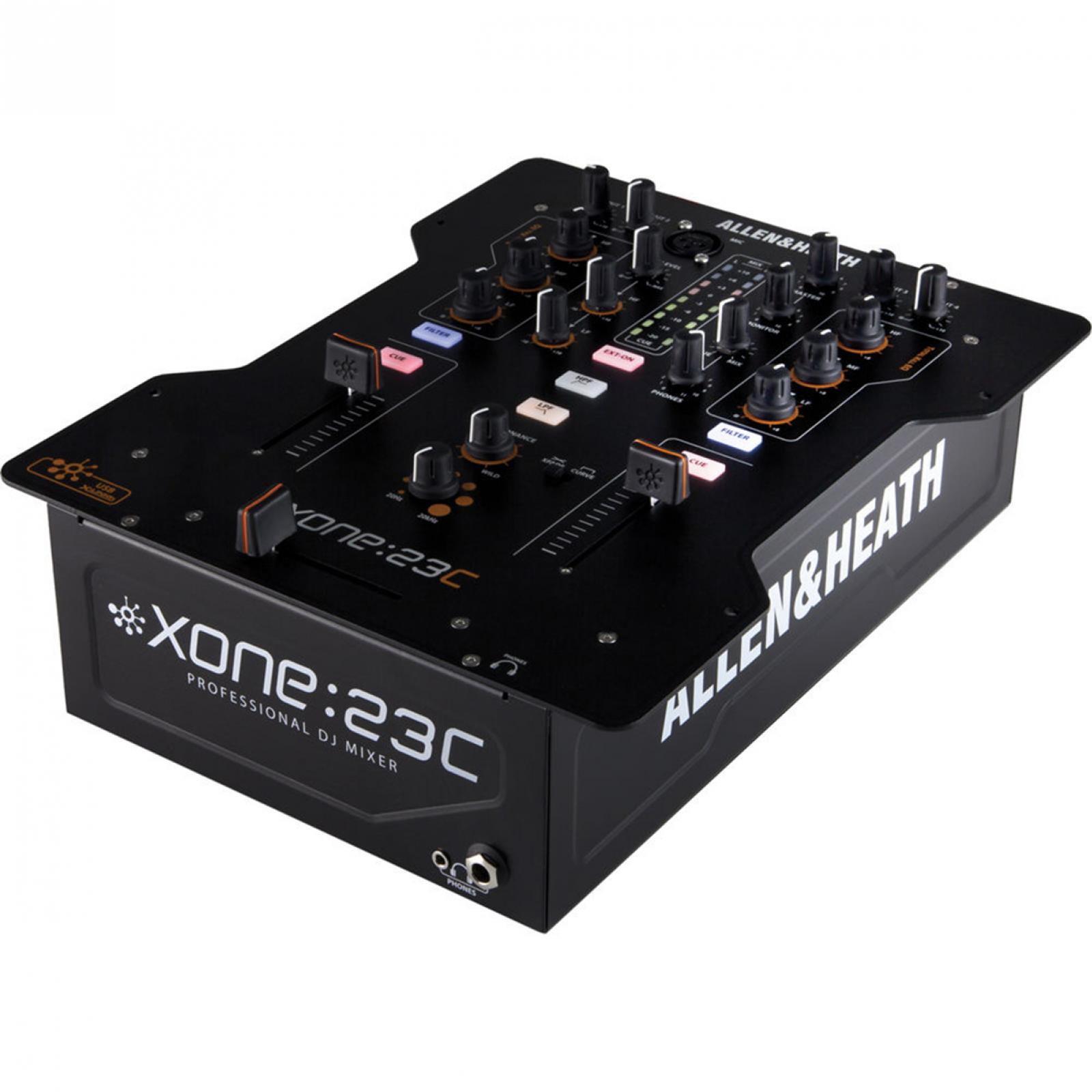

The Xone:23C brings together the best of digital DJing and conventional mixing in a compact accessible format.

This high performance DJ mixer is equipped with a premium quality, 4 stereo channel 96kHz 24bit internal soundcard and offers plug n’ play connection via X:LINK to Xone:K series controllers, making it perfect for performers looking to combine the convenience of digital DJing and recording with the hands-on control and visual appeal of a real mixer.

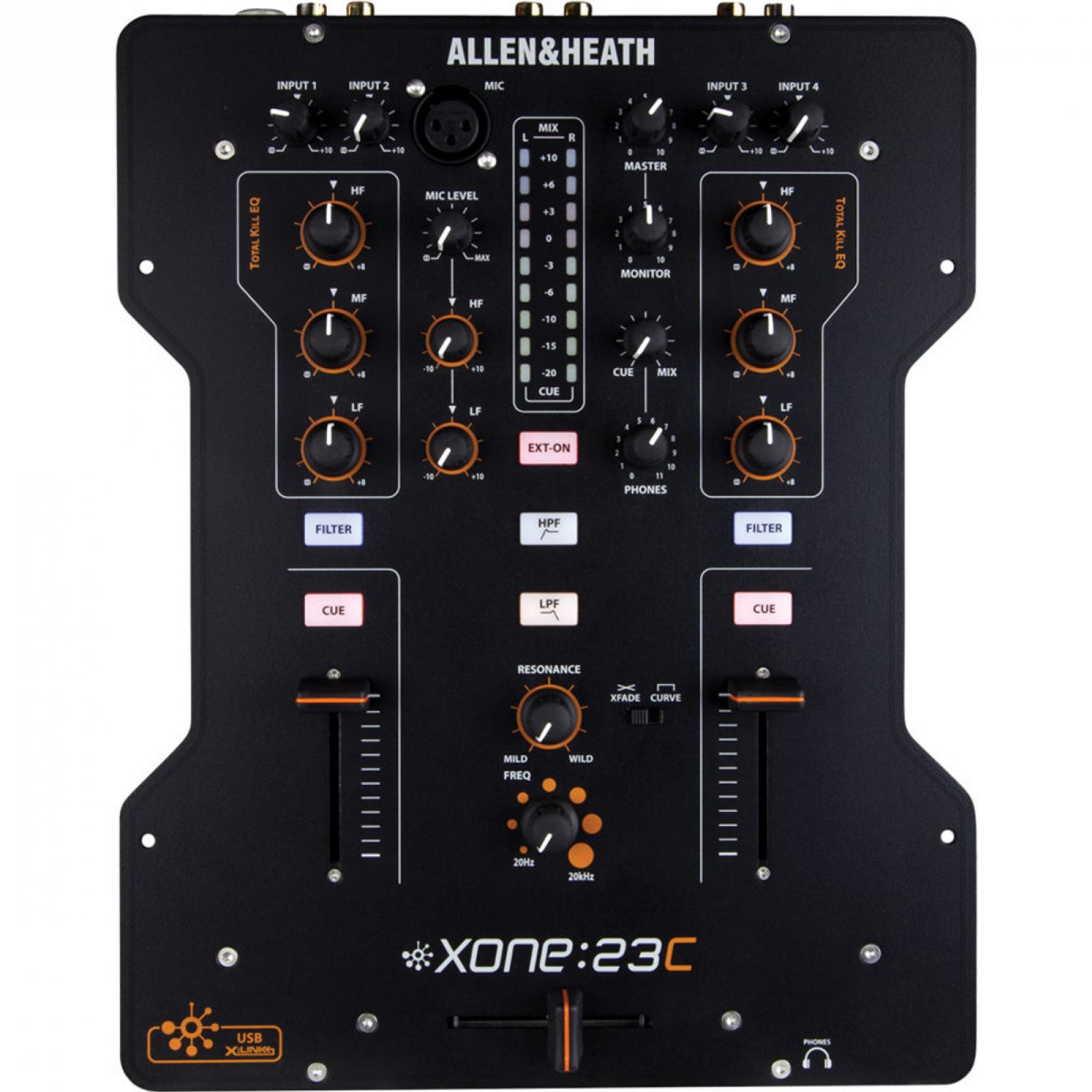

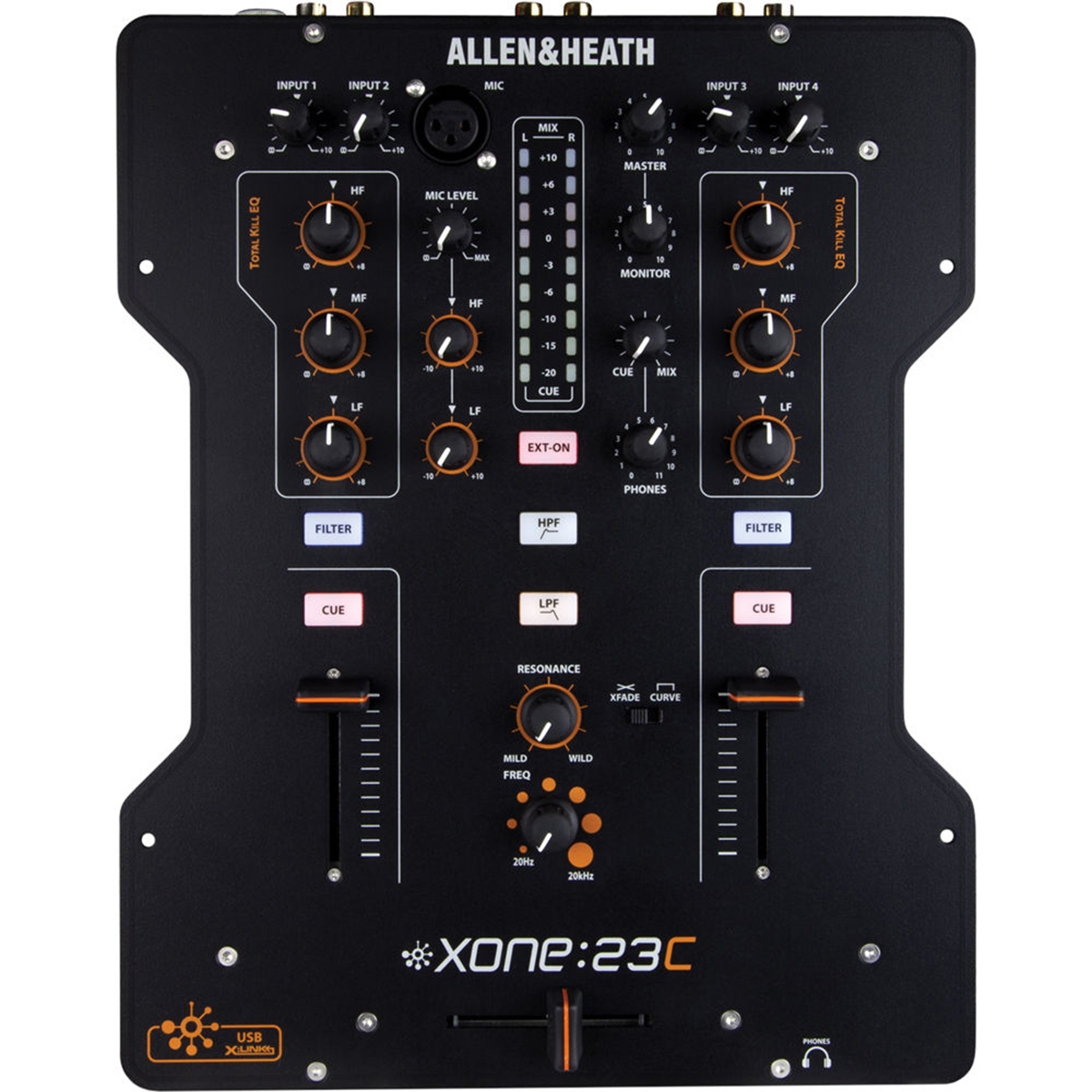

Xone:23C includes an enhanced version of the legendary Xone filter with resonance control, VCA faders, 3 band total kill EQ, illuminated switches, crossfader curve selector and styling inspired by the flagship Xone:DB4.

At the heart of the mixer is the renowned analogue Voltage Control Filter (VCF) system offering Low-Pass and High-Pass filters, frequency sweep and ‘mild to wild’ resonance control. There is also an FX loop to connect to third party FX units, which route back in through the filter system.

Xone:23C features 2+2 stereo channels with dual levels for phono and line inputs, allowing four music sources to be connected at the same time, including turntables and CD/media players. Additionally, the internal soundcard enables replay and recording from DJ software, offering users all the benefits of digital DJing whilst using hands-on mixer controls.

The main mix output and mic input are on professional standard balanced XLR’s, and there is a dedicated record output. The Xone:23C is equipped with comprehensive monitoring facilities, including a dedicated booth output with its own volume control, a cue mix control, and signal levels clearly displayed on the 9 segment peak hold  meters.

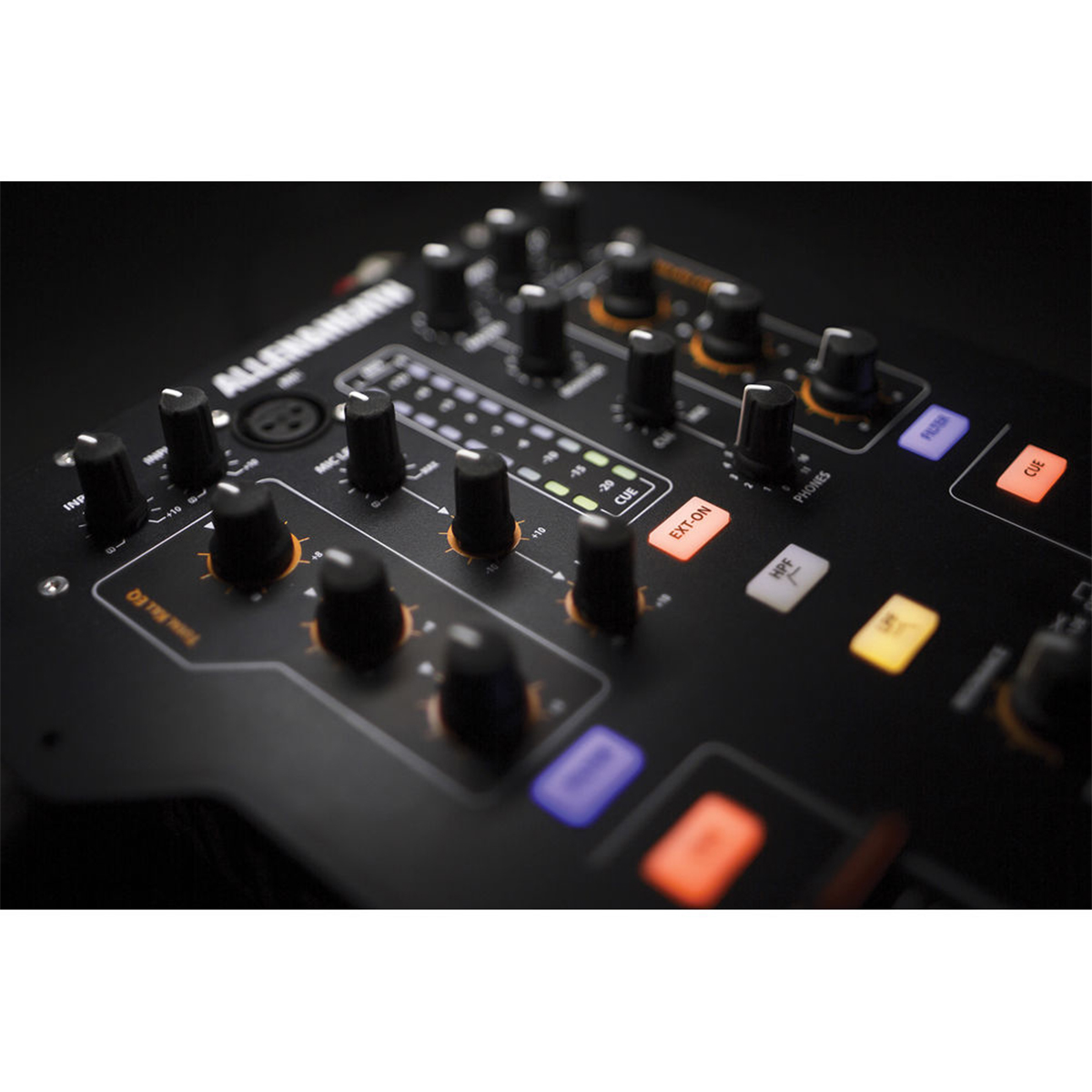

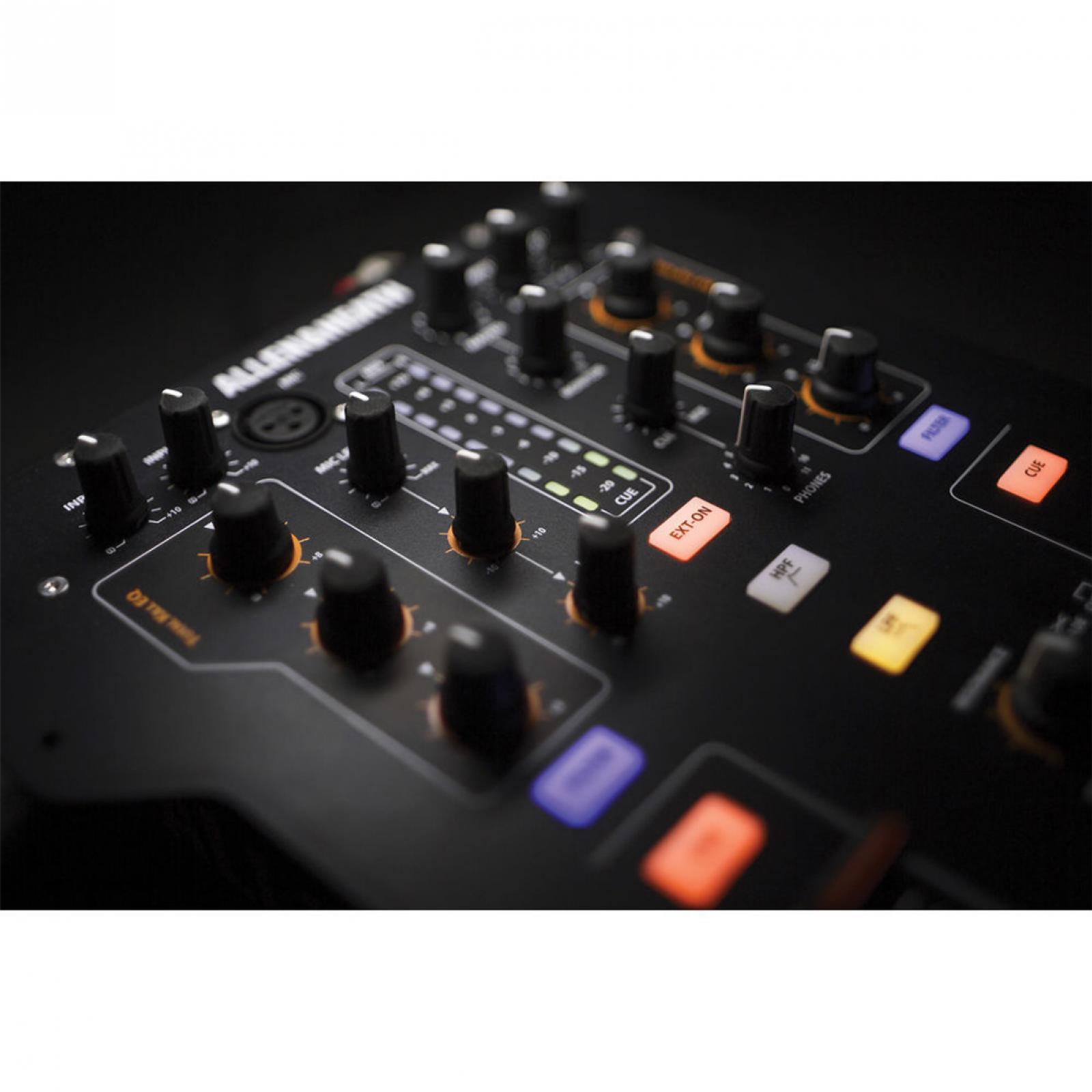

Styled on the flagship Xone:DB4, the Xone:23C includes soft touch, backlit controls, light-piped meters and a distinctive new shaped steel faceplate. The mixer can also be upgraded with the latest Innofader for enhanced scratch performance, available as an accessory.




Features :
4 STEREO CHANNEL USB SOUNDCARD
96kHz 24bit 4 stereo channel USB soundcard which enables replaying and recording from your chosen DJ software, offering digital DJing with a real  mixer.

USB X:LINK

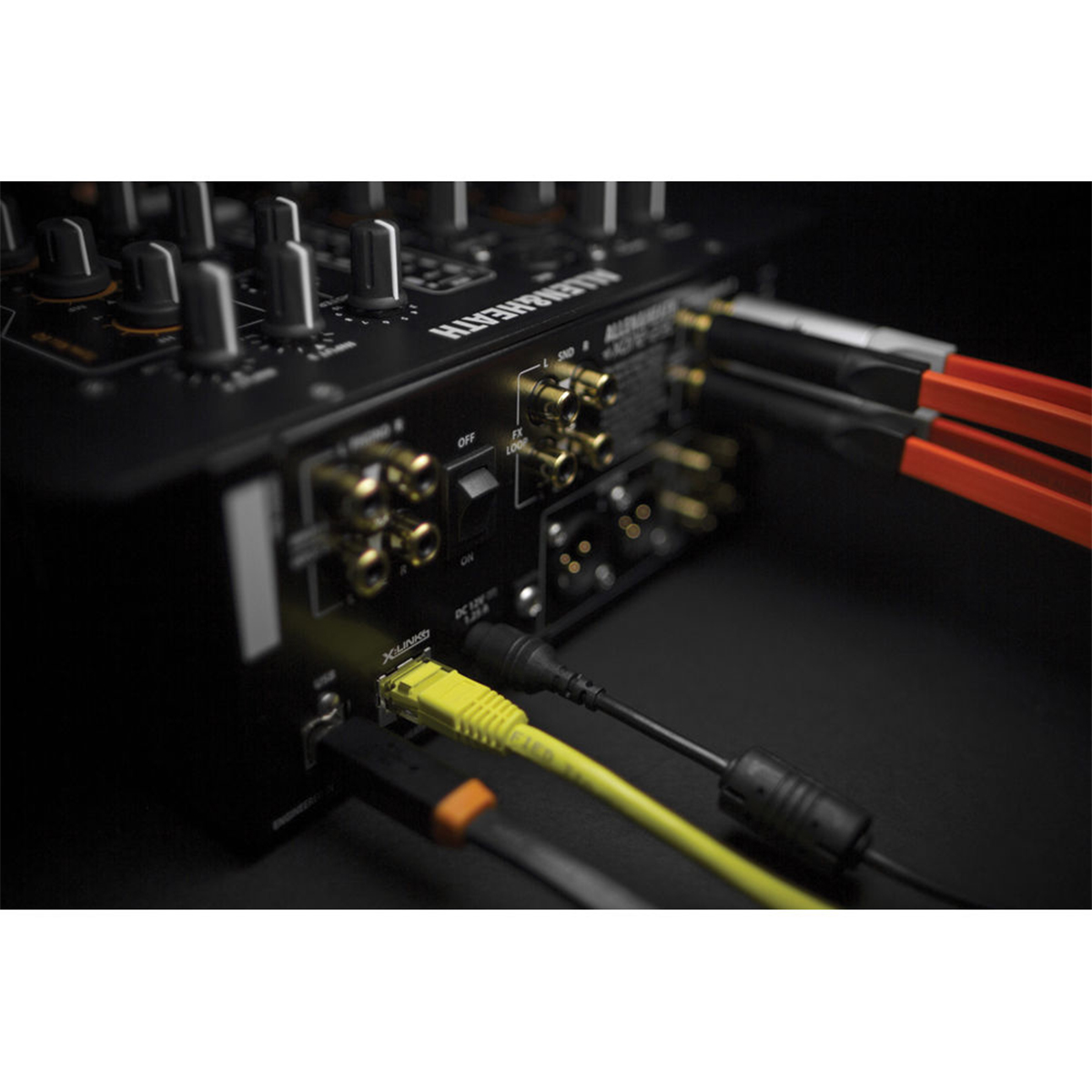

X:LINK provides power and MIDI data over ethernet connection to our Xone:K Series controllers, saving USB ports on computers and offering extended software control.

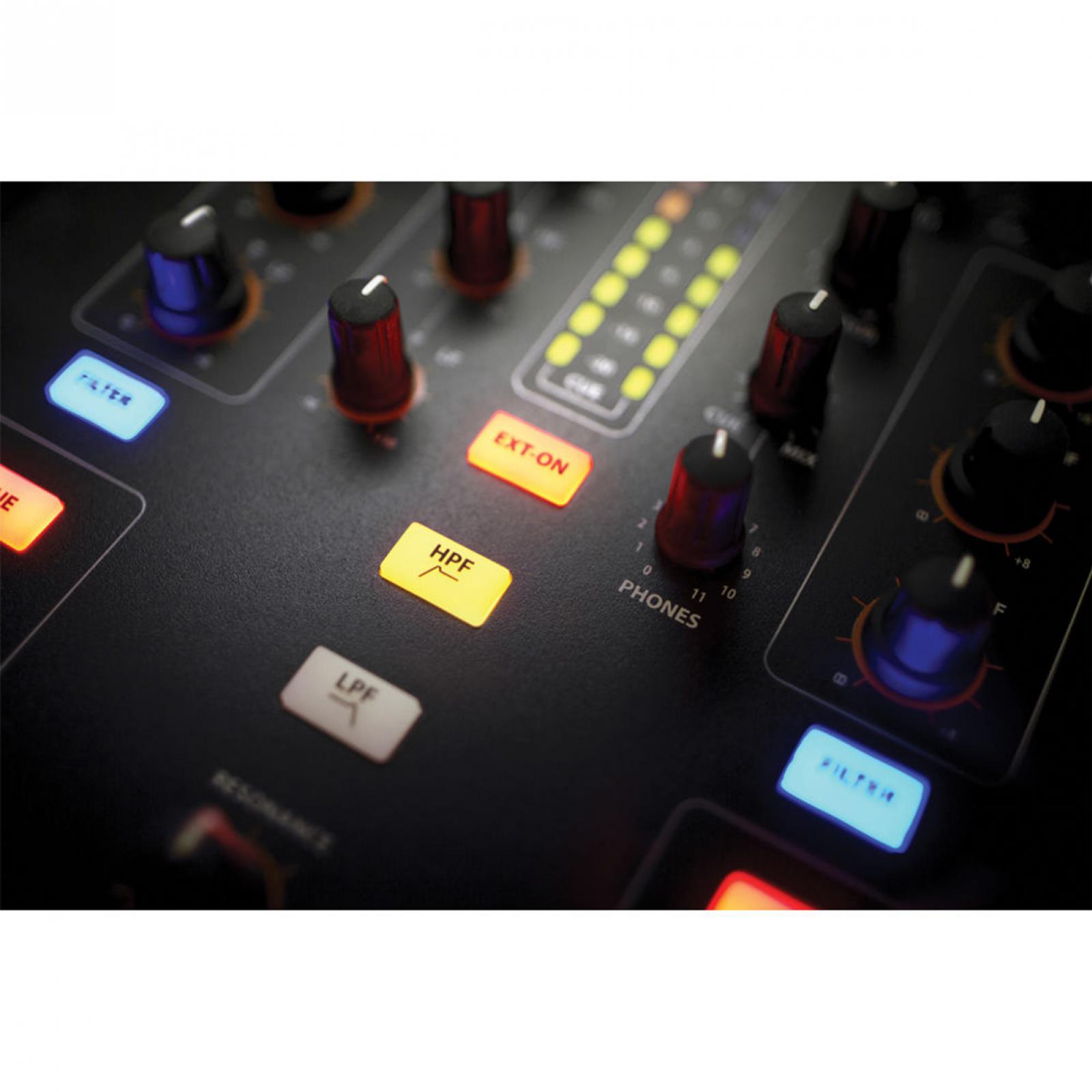

VCF FILTER SYSTEM
At the heart of the mixer is the renowned analogue Voltage Control Filter (VCF) system offering Low-Pass and High-Pass filters, frequency sweep and ‘mild to wild’ resonance control. There is also an FX loop to connect to third party FX units, which route back in through the filter system.

3 BAND TOTAL KILL EQ
Both channels feature 3 band EQ Isolator, allowing you to creatively eliminate frequencies and bring them back into the mix with complete control.

EXTERNAL FX LOOP
Seamlessly integrate your favourite external FX unit into your setup with send and return connections plus FX loop switching.

Number of Channels : 2 x Stereo
Fader Shutoff : Channel: >-80 dB / Crossfader: >-80 dB
EQ : Channel EQ:Hi/Mid/Low
Built-In Effects : None
Sample Rates : 96 kHz
Bit Depths : 24-Bit

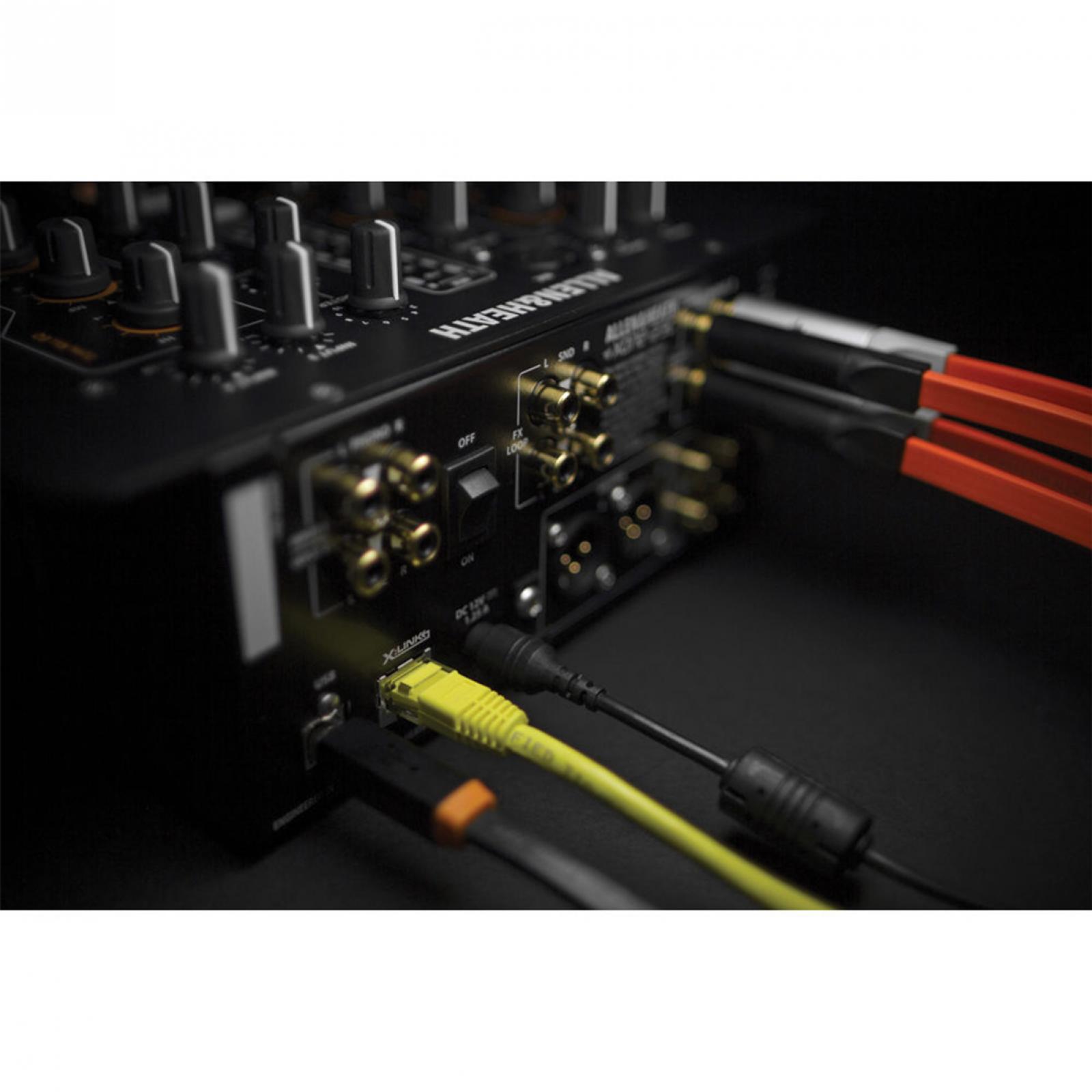

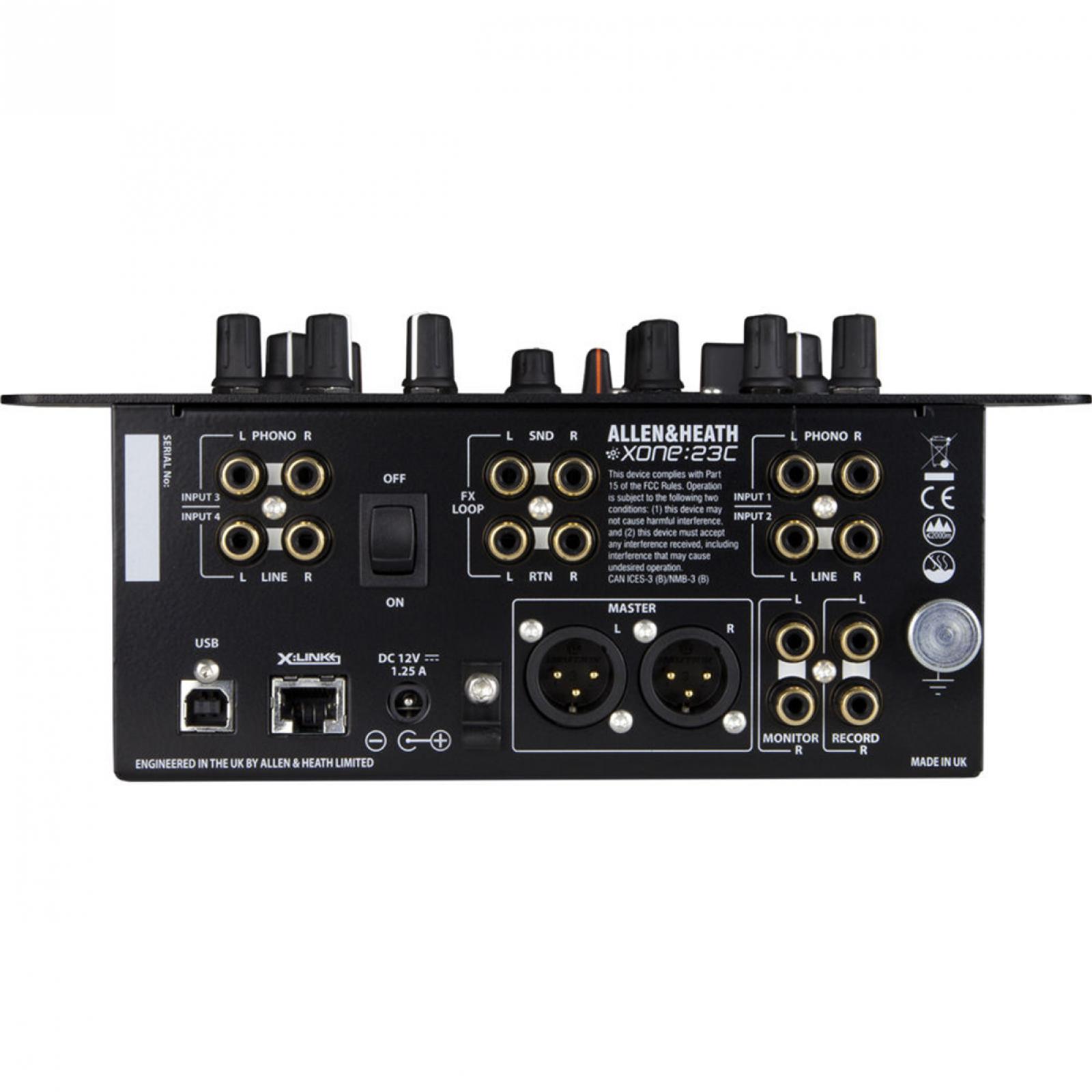

Connectivity
Audio Inputs
2 x Stereo RCA Phono Input
2 x Stereo RCA Line Input
1 x Stereo RCA Return Input
1 x XLR 3-Pin Mic Input

Audio Outputs
2 x XLR 3-Pin Balanced Master Output
1 x Stereo RCA Booth Output
1 x Stereo RCA Record Output
1 x Stereo RCA Send Output
1 x 1/8" / 3.5 mm TRS Headphone Output
1 x 1/4" TRS Headphone Output

USB : 2 x USB Type-B (USB 2.0)

Performance
Frequency Response : 10 Hz to 50 kHz

Input Level
Phono:
7 (Min)
100 mV (Max)
Line:
-10 dBu (Min)
+20 dBu (Max)
Return:
0 dBu (Min)
+20 dBu (Max)
Mic:
-42 dBu (Min)
-12 dBu (Max)

Output Level
Master:
+4 dBu (Nominal)
+28 dBu (Max)
Booth:
-2 dBu (Nominal)
+22 dBu (Max)
Record:
-2 dBu (Nominal)
+19 dBu (Max)
Send:
-2 dBu (Nominal)
+19 dBu (Max)

Headphone Output Power : 200 mW into 30 Ohms

I/O Impedance
Phono Input:
47 Ohms
Line Input:
20 Kilohms
Return Input:
10 Kilohms
Mic Input:
<2 Kilohms
Master Output:
100 Ohms
Booth Output:
100 Ohms
Record Output:
100 Ohms
Send Output:
100 Ohms
Headphone Output:
1 Ohms

SNR : Master:-85 dBu
THD+N : 0.01%

Compatibility
OS Compatibility : macOS 10.12 / 10.13 / 10.14 / 10.15/Windows 810
