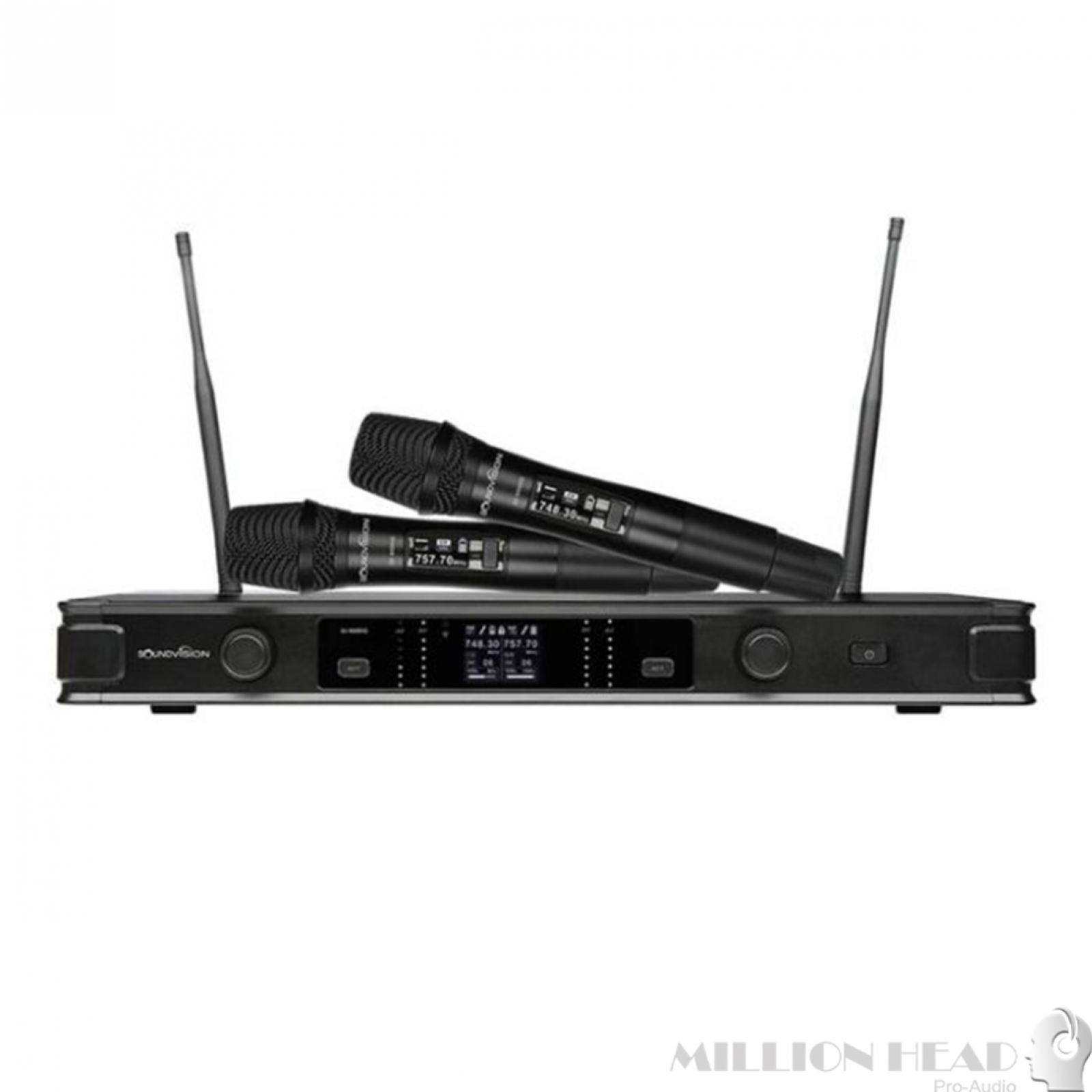

SOUNDVISION : SU-850DG SOUNDVISION

UHF wireless microphone, frequency 748.3 – 757.7 MHz, receiving signal up to 100 meters, suitable for meetings, training, karaoke.
หมายเลขสินค้า : SU-850DG

ราคา 9,900.00 บาท

ราคาปกติ : 11,900.00 บาท

ประหยัดไป 2,000.00 บาท



เลือกจำนวน :

เลือกสี : สีดำ

  • สีดำ

  • ฟรี!

    ประกัน 1 ปี

  • ฟรี!

    ปรึกษาด้านเทคนิก


แชร์ไปยัง :

UHF wireless microphone, frequency 748.3 – 757.7 MHz, receiving signal up to 100 meters, suitable for meetings, training, karaoke.

ไมโครโฟนไร้สายสัญญาณ UHF คลื่นความถี่ 748.3 – 757.7 MHz รับสัญญาณได้ไกลถึง 100 เมตร เหมาะสำหรับการประชุม ฝึกอบรม คาราโอเกะ

Dual handheld wireless microphones UHF band frequency range 748.3 ~ 757.7 MHz, can switch channels The signal frequency can be 190 channels (2 x 95), transmit power 5mW / 20mW, receive signal up to 100 meters (outdoor) with the receiver. at full efficiency ability to prevent excellent interference and can charge the microphone with the receiver.

ไมโครโฟนไร้สายมือถือคู่ ช่วงย่านความถี่ UHF 748.3 ~ 757.7 MHz ตามข้อกำหนดของกสทช. (ประเทศไทย) สามารถเปลี่ยนช่อง ความถี่สัญญาณได้ 190 ช่อง (2 x 95) กำลังส่ง 5mW / 20mW รับสัญญาณได้ไกลถึง 100 เมตร (ที่โล่งแจ้ง) ด้วยตัวเครื่องรับสัญญาณ ที่เต็มประสิทธิภาพ ความสามารถในการป้องกันการ รบกวนที่ดีเยี่ยม และสามารถชาร์จไมโครโฟนกับเครื่องรับได้

Features :
  • ช่วงความถี่ UHF 748.3 ~ 757.7 MHz แบบดิจิตอล
  • การตอบสนองความถี่ 30Hz ~ 20kHz (±2dB)
  • ตั้งค่าความถี่ล่วงหน้าได้ 190CH (2 x 95CH)
  • ชาร์จไมโครโฟนแบบใช้มือถือด้วยเครื่องรับ
  • จอแสดงผล TFT
  • จอแสดงผล OLED สำหรับไมโครโฟนมือถือ
  • ไฟ LED แสดงสถานะสัญญาณ AF / RF บนตัวรับสัญญาณ
  • รับสัญญาณไกลถึง 100 เมตร
  • ปิดเสียงอัตโนมัติเมื่อล้มหรือนอนลง
  • IR ซิงค์ดาวน์โหลดความถี่จากเครื่องรับ

Features :
  • Digital UHF 748.3 ~ 757.7 MHz frequency range.
  • Frequency response 30Hz ~ 20kHz ±2dB
  • Pre-Set 190CH (2*95CH) selectable frequencies.
  • Charge handheld microphone by receiver.
  • TFT display to indicate frequency, battery level, volume level, Channel and Menu Settings.
  • OLED Display for handheld microphones
  • AF / RF signal indicator LED light on receiver
  • Up to 100 Meters line-of-sight range. / Output power 5mW/20mW
  • Auto mute when falling or laid down.
  • Unique digital 16 bits ID pilot technology, no crosstalk disturbance even same frequency.
  • IR sync downloading the frequency from receiver.
  • Wireless system adopts Intelligentized cryptographic hardware.
  • An efficient battery energy design that allows the microphone to be used continuously for longer periods of time.
  • Ideal for large and small stages, clubs music entertainment, conference, meeting, training, speeches and karaoke etc.

System
  • Carrier frequency : UHF 748.3 ~ 757.7MHz
  • Available channels : 190 CH  (2 x 95CH)
  • Bandwidth : 9.4 MHz
  • Dynamic range : 96dB
  • Total harmonic distortion : <0.1%
  • Frequency response : 30Hz ~ 20kHz ±2dB
  • Demodulation mode : DQPSK
  • Sampling rate : 48 KHz
  • Audio output level : 1 x 6.3mm, 2 x XLR balance output

SU-850DG  :  Receiver
  • Frequency response : 30Hz ~ 20kHz ±2dB
  • Power supply : DC 12V-18V 1A
  • Consumption power : 2 Watts
  • Signal/noise ratio : 96dB
  • Receiving sensitivity : -95dBm

SU-850HG  :  Handheld transmitter
  • Carrier frequency : UHF 748.3 ~ 757.7MHz
  • Available channels : 190 CH  (2 x 95CH)
  • Bandwidth : 9.4 MHz
  • Frequency switch : IR SYNC
  • Microphone type : Dynamic
  • Polar pattern : Cardioid Directional
  • Frequency response : 50Hz – 15kHz ±5dB
  • Impedance : 580Ω  ±15% @1kHz
  • Sensitivity : -52dB  ±2dB (0dB=1V/Pa @1kHz)
  • Output power : 5mW / 20mW
  • Harmonic radiation : <-50dBc
  • Battery : 18500 Lithium battery (1500mAh) (USB Charger)
  • Battery life approx. : 10 hours
