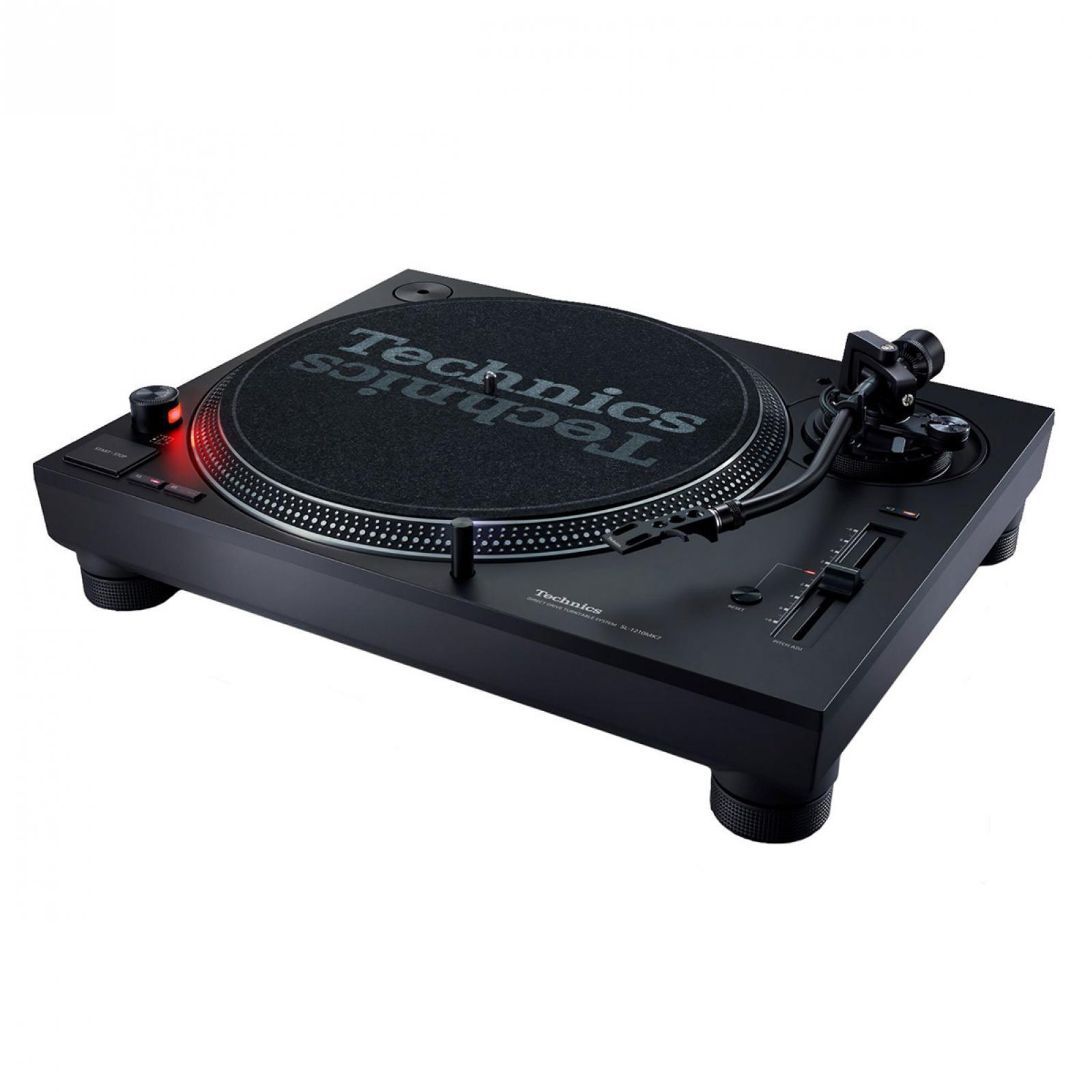

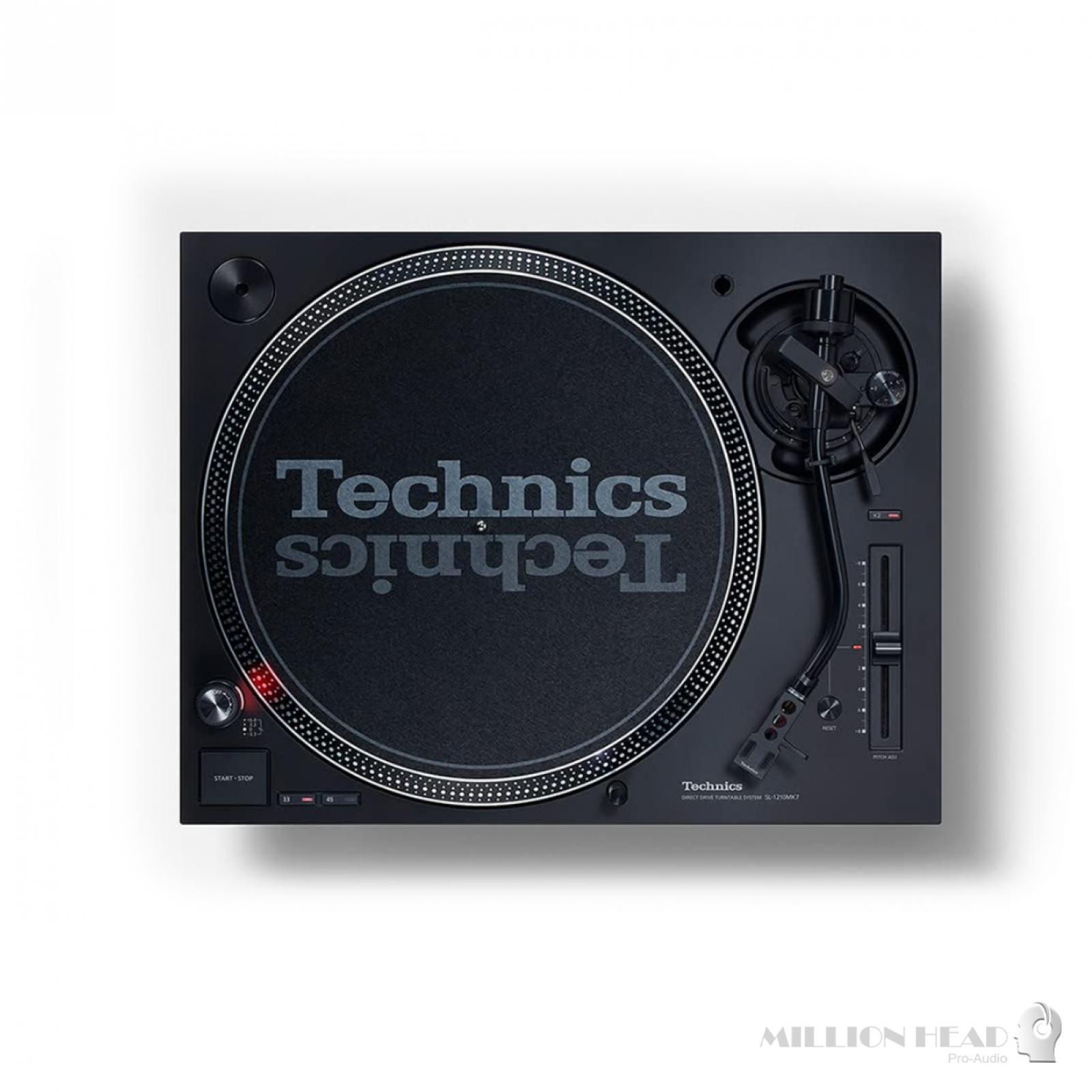

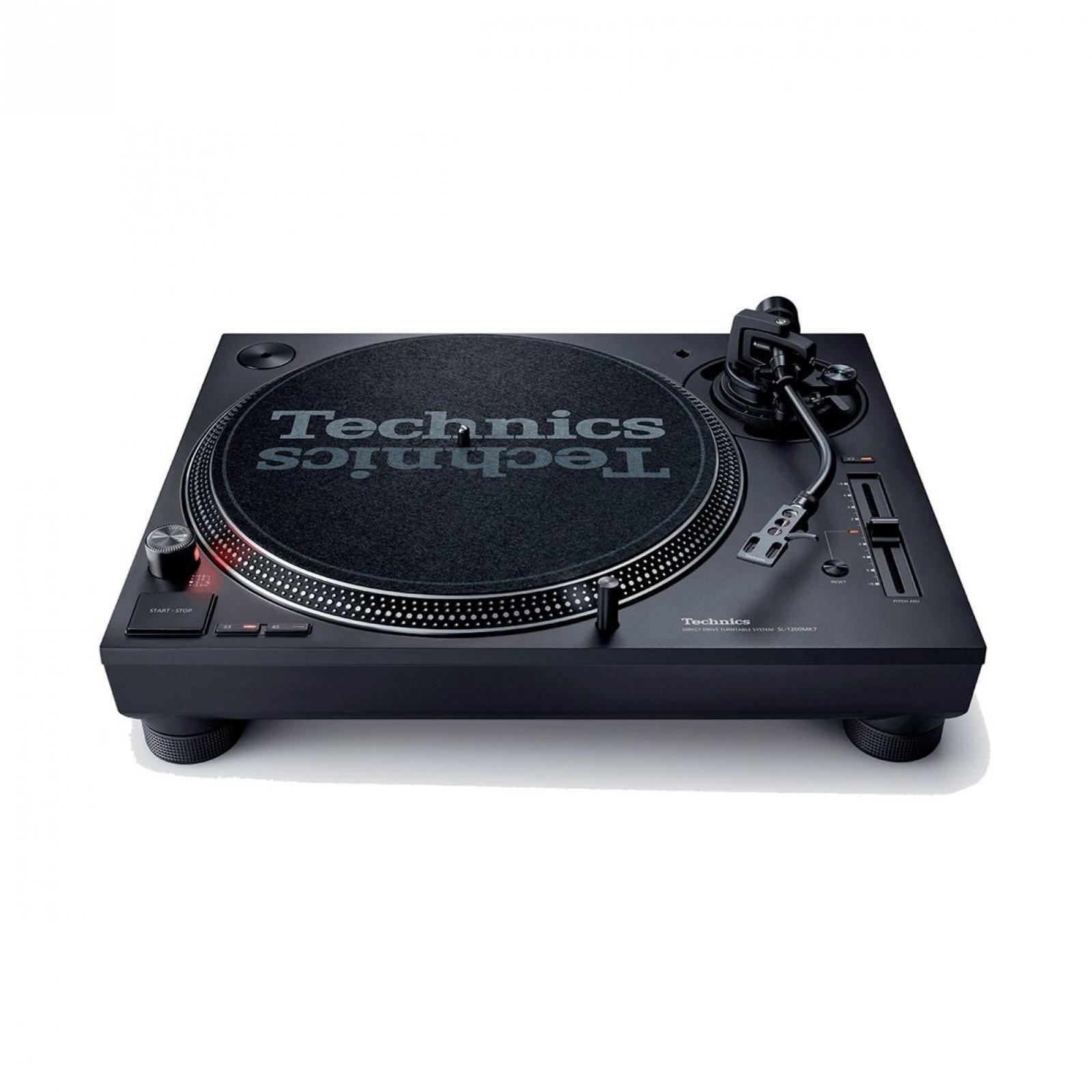

Coreless Direct Drive DJ Turntable with Aluminum S-shape Tone Arm, Adjustable Starting Torque/Brake Speed, Reverse Play Function, and Pitch Control
หมายเลขสินค้า : SL1210MK7
ฟรี!
ประกัน 1 ปี
ฟรี!
ปรึกษาด้านเทคนิก
Technics : SL1210MK7
Coreless Direct Drive DJ Turntable with Aluminum S-shape Tone Arm, Adjustable Starting Torque/Brake Speed, Reverse Play Function, and Pitch Control
ระบบขับเคลื่อนโดยตรงใช้มอเตอร์หมุนช้าเพื่อขับเคลื่อนจานโดยตรง ระบบนี้มีข้อดีหลายประการ ให้ประสิทธิภาพสูง เช่น ความแม่นยำในการหมุนและแรงบิดที่ทรงพลัง โดยไม่จำเป็นต้องเปลี่ยนชิ้นส่วน และรักษาความน่าเชื่อถือสูงในระยะเวลานาน ในทางกลับกัน ระบบขับเคลื่อนโดยตรงนั้นสร้างความผิดปกติของการหมุนที่เรียกว่าฟันเฟือง สำหรับ SL-1210MK7 มีการพัฒนามอเตอร์ขับเคลื่อนโดยตรงแบบไร้คอร์แบบใหม่ มอเตอร์นี้ใช้สเตเตอร์แบบไม่มีแกน การถอดแกน (แกนเหล็ก) ออกจากสเตเตอร์ช่วยขจัดสาเหตุของการฟันเฟือง นอกจากนี้ แรงแม่เหล็กของแม่เหล็กโรเตอร์ยังได้รับการปรับปรุงให้อยู่ในระดับสูงสุดที่เป็นไปได้ และช่องว่างระหว่างสเตเตอร์แบบไร้แกนและแม่เหล็กโรเตอร์ได้รับการปรับปรุงให้เหมาะสม จึงทำให้ได้ประสิทธิภาพแรงบิดสูงเท่ากับของ SL-1210MK5 ด้วยการหมุนที่นุ่มนวลและแรงบิดอันทรงพลัง มอเตอร์นี้จึงสร้างเสียงจากกรู๊ฟของแผ่นเสียงอะนาล็อกได้อย่างแม่นยำและสมจริง
ฟีเจอร์/Features
High-quality sound reproduction true to the Technics philosophy
Cordless Direct Drive motor achieving stable rotation and powerful torque
Highly sensitive tonearm
Two-layer structure platter with improved vibration damping performance

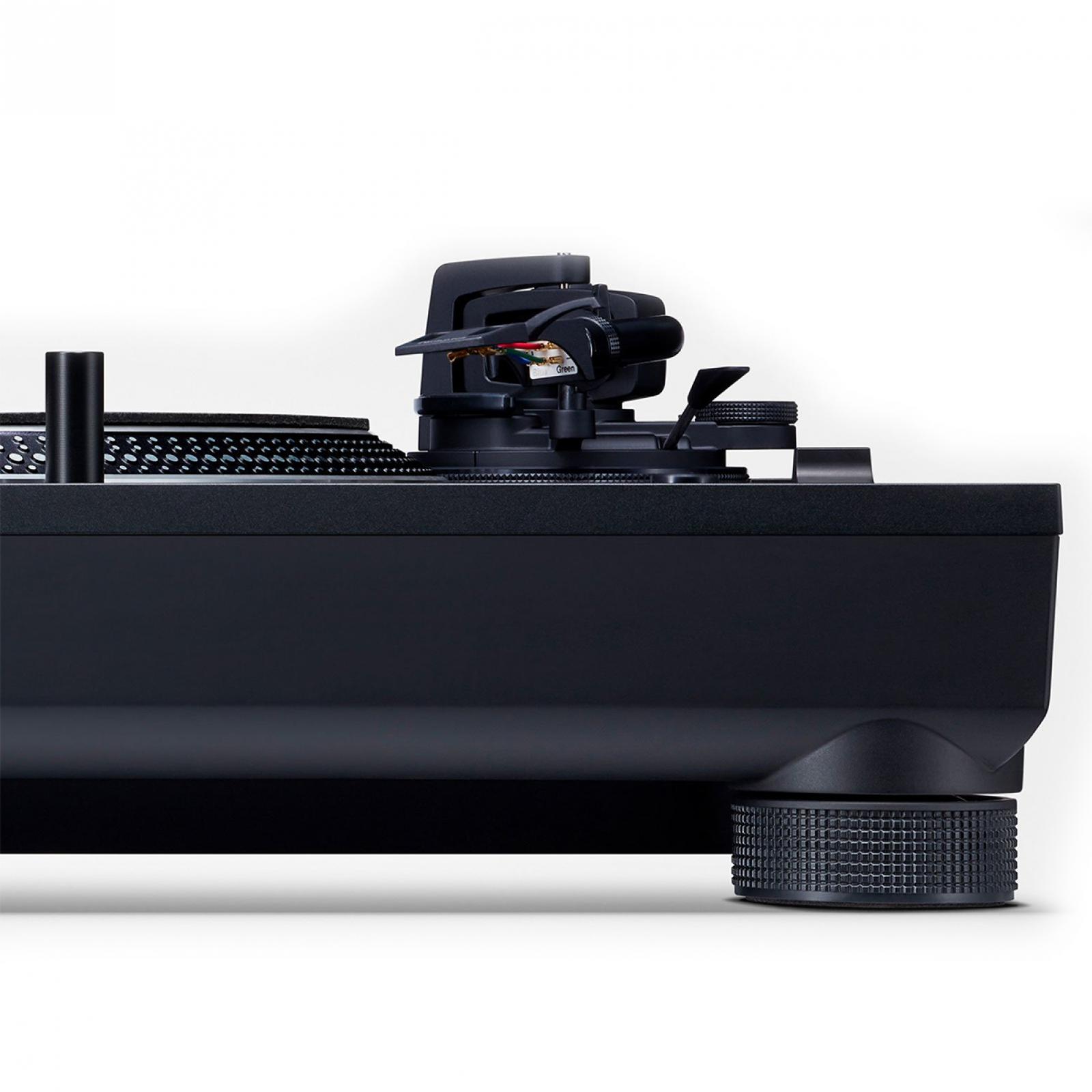

High rigidity and high damping insulator for thorough shut-out of all vibrations
Detachable power/phono cable terminals prevent cable disconnections
Inherits and enhances the operating ease of the SL-1210 series

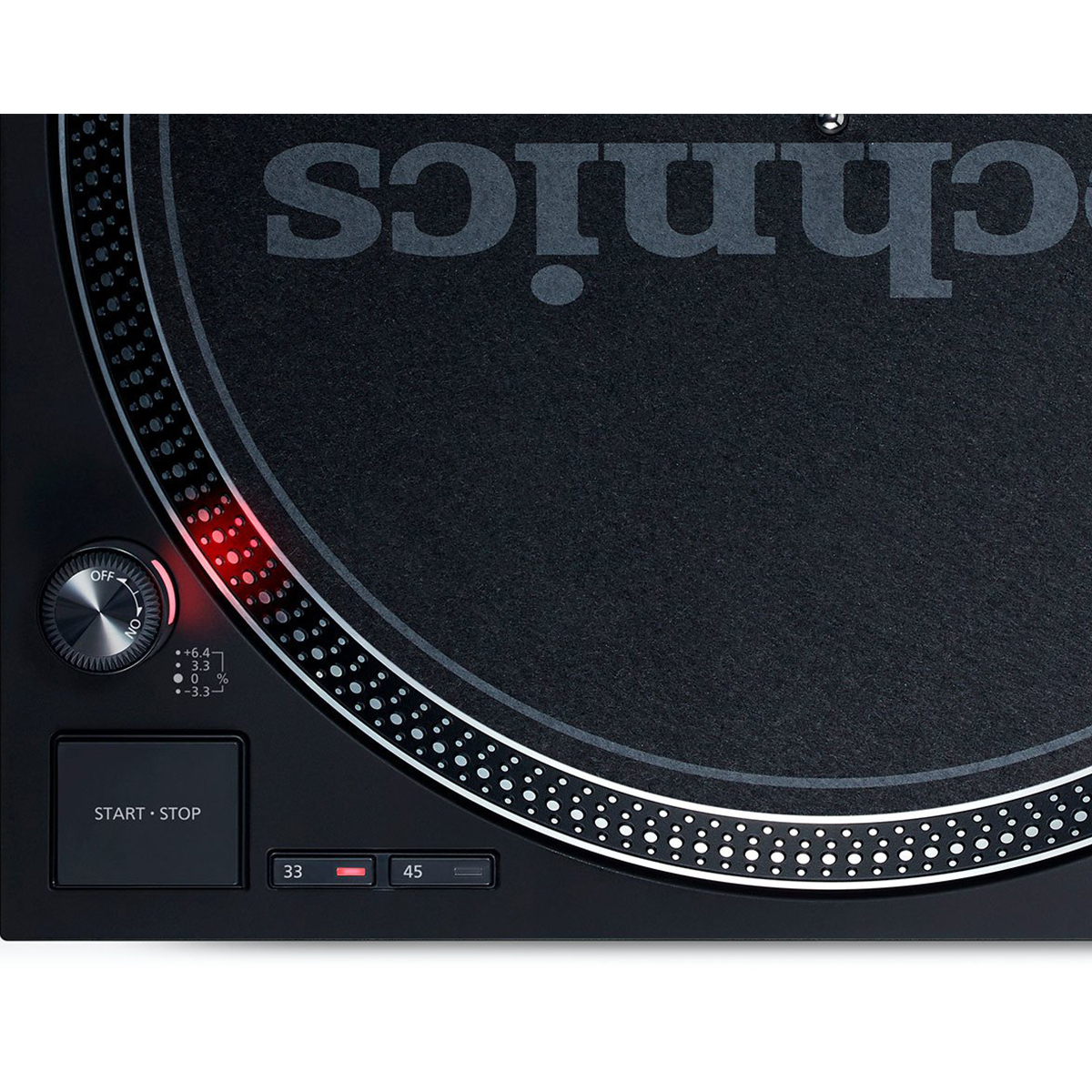

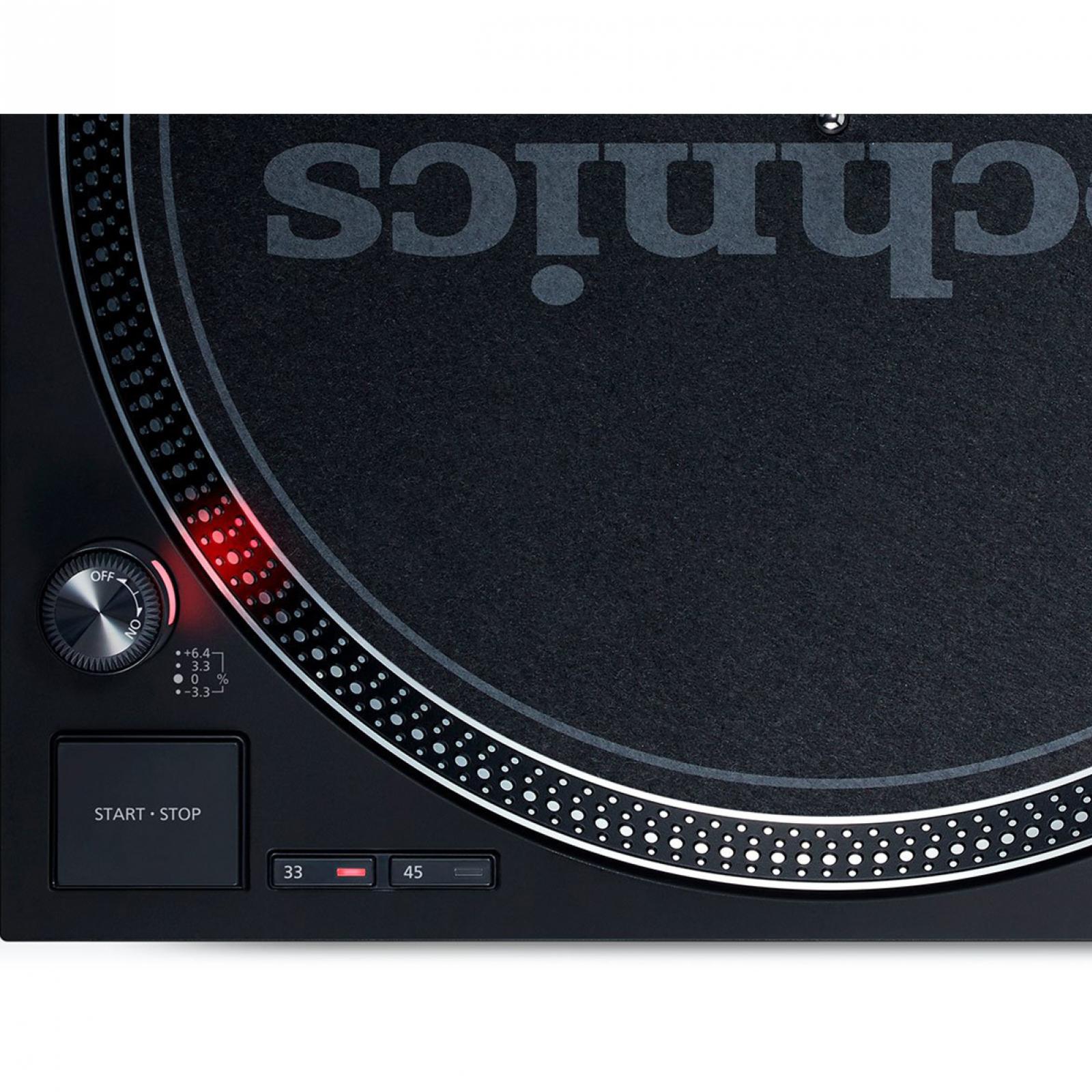

Starting torque/brake speed adjustment function

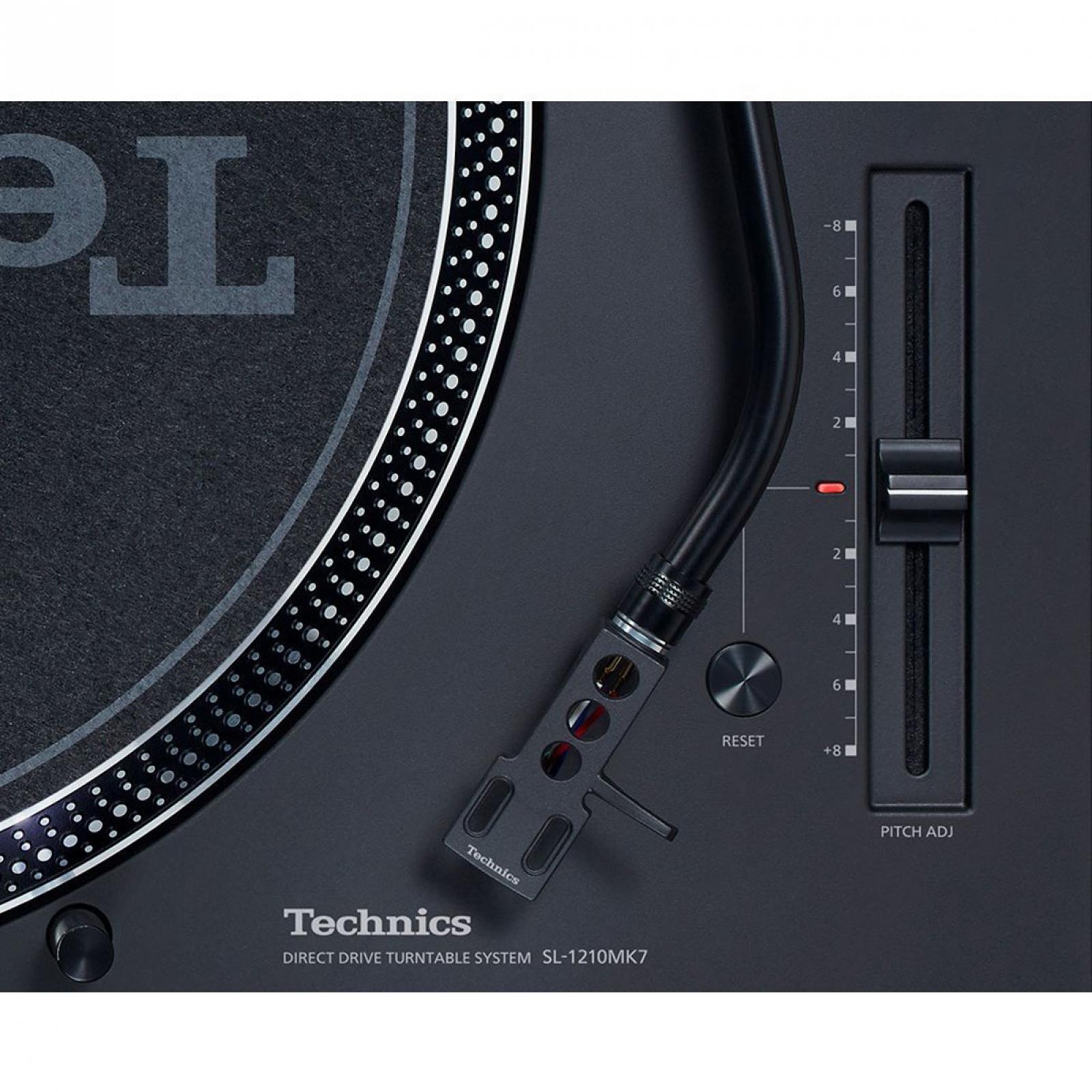

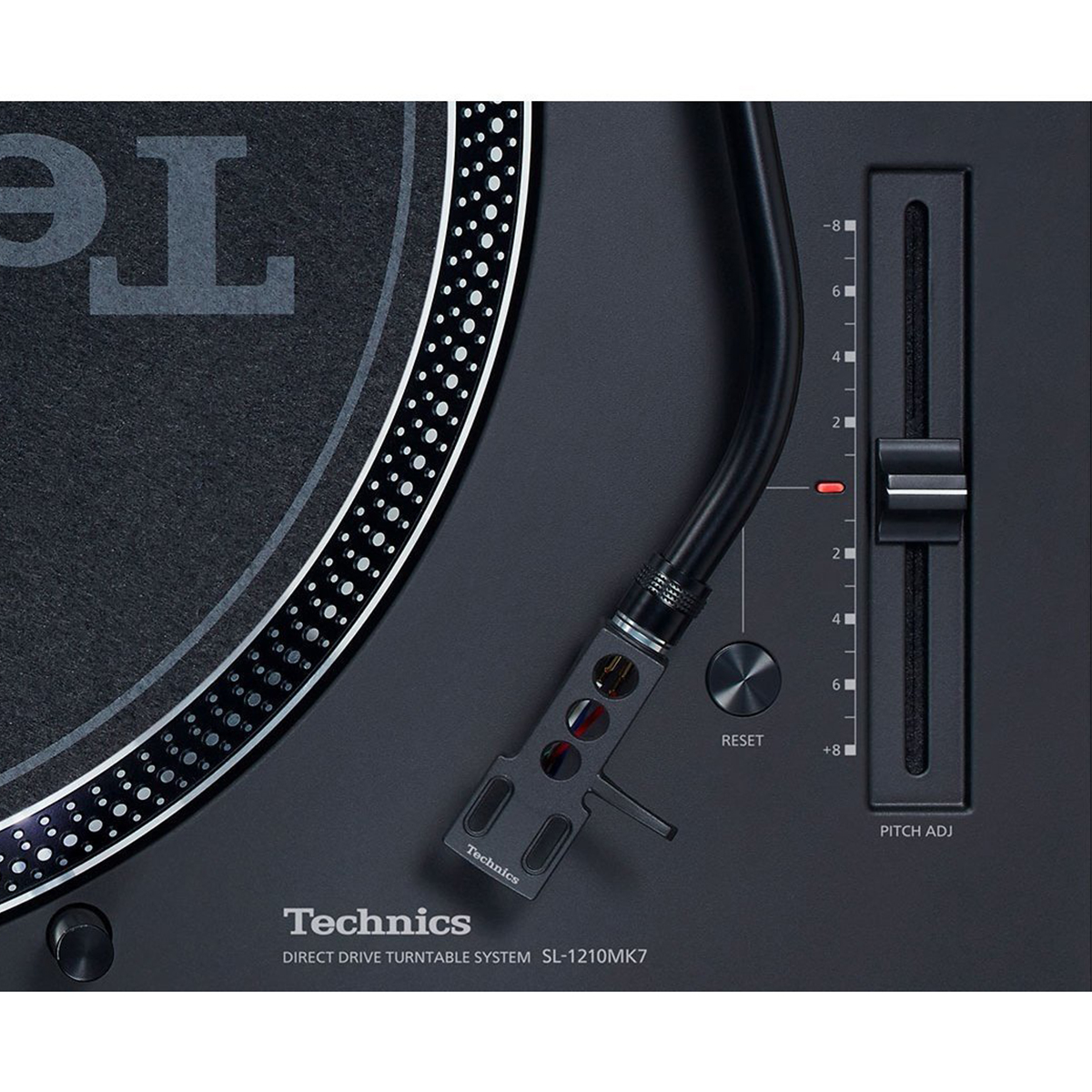

Pitch control function enables accurate and stable pitch adjustment
A traditional design ideal for DJ play
Reverse play function expands the breadth of DJ play styles
Stylus illuminator features a highly bright and long-life LED
All black design
สเปค
ข้อมูลพื้นฐาน
Dimensions (W x H x D) : 453 x 169 x 353 มม.
Weight : ประมาณ 9.6 กก.
Power Supply : AC 110 - 240 V, 50 / 60 Hz
Power Consumption : 8 W ประมาณ 0.2 W (โหมดสแตนด์บาย)
Accessories : จานหมุนแผ่นเสียง แผ่นรองแผ่นเสียง แผ่นกันรอย ฝาครอบกันฝุ่น อะแดปเตอร์สำหรับแผ่นเสียง ตุ้มถ่วงน้ำหนัก แป้นยึดหัวเข็ม ชุดสกรูแบบยาว สายสัญญาณ Phono สายไฟ AC คู่มือการใช้งาน
ข้อมูลเกี่ยวกับจานหมุนแผ่นเสียง
Turntable Platter : อะลูมิเนียมหล่อขึ้นรูป
เส้นผ่านศูนย์กลาง: 332 มม.
น้ำหนัก: ประมาณ 1.8 กก. (รวมแผ่นรองแผ่นเสียง และแผ่นกันรอย )
ระยะเวลาการเร่งความเร็วในการหมุนเริ่มต้น : 0.7 วินาที จากหยุดนิ่งถึง 33 1/3 rpm
Wow And Flutter : 0.025 % W.R.M.S.
ความเร็วในการหมุนแผ่นเสียง : 33-1/3, 45 rpm (พร้อมสวิตช์ 78 rpm)
Starting Torque : 0.18 นิวตันเมตร / 1.8 เซนติเมตรกิโลกรัมแรง
ประเภท : เครื่องเล่นแผ่นเสียงแบบขับตรง
ข้อมูลเกี่ยวกับโทนอาร์ม
ส่วนที่ยื่นออกมา (Overhang) : 15 มม.
องศาความคาดเตลื่อนในการกดเข็ม (Tracking) : ภายใน 2° 32’ (ที่ร่องด้านนอกของแผ่นเสียง 30 ซม.)
ภายใน 0° 32’ (ที่ร่องด้านในของแผ่นเสียง 30 ซม.)
Type : Universal Static Balance
ความยาวของโทนอาร์ม : 230 มม.
ระดับแรงกดปลายเข็มที่สามรถปรับได้ : 0 - 4 ก. (อ่านแบบ Direct Reading)
น้ำหนักของแป้นยึดหัวเข็ม (Head Shell) : ประมาณ 7.6 ก.
มุมชดเชย : 22°
ระดับความสูงของโทนอาร์มที่สามารถปรับได้ : 0 - 6 มม.
ช่องต่อแป้นยึดหัวเข็ม : ขั้วต่อแบบ 4 เข็ม ขนาดเส้นผ่านศูนย์กลาง 1.2 มม.
น้ำหนักของหัวเข็มที่สามารถใช้งานได้ : (ไม่มีตุ้มถ่วงน้ำหนักเสริม)
5.6 - 12.0 ก.
14.3 - 20.7 ก. (รวมแป้นยึดหัวเข็ม)
ช่องต่อ
Audio Output : Phono (พินแจ็ก) x 1, ช่องต่อสายดิน x 2
Spec
General
Power Supply : AC120 V, 60 Hz
Power Consumption : 8W (Approx. 0.2W (Standby))
Dimensions (W x H x D) : 453 x 169 x 353mm (17-27/32 × 6-21/32 × 13-29/32 inch)
Weight : Approx. 9.6kg (Approx. 21.2lbs)
Turntable Section
Drive Method : Direct Drive
Turntable Speeds : 33 1/3, 45rpm (with switch 78 rpm)
Starting Torque : 0.18N・m / 1.8kg・cm (1.56 lbs-in)
Build-up Characteristics : 0.7 s. from standstill to 33 1/3 rpm
Wow and Flutter : 0.025% W.R.M.S.
Turntable Platter : Aluminum die-cast
Diameter :332mm (13-5/64")
Weight :Approx. 1.8kg (4.0 lbs) (Including slipmat and slip sheet)
Tonearm Section
Type : Universal, Static Balance
Effective Length : 230mm (9-1/16")
Overhang : 15mm (19/32")
Tracking Error Angle : Within 2° 32' (at the outer groove of 30cm(12") record)
Within 0° 32' (at the inner groove of 30cm(12") record)
Offset Angle: 22° • Arm Height Adjustment Range: 0 - 6mm
Stylus Pressure Adjustment Range : 0 - 4g (Direct Reading)
Head Shell Weight : Approx. 7.6g
Applicable Cartridge Weight Range : [without auxiliary weight] 5.6 - 12.0g (14.3 - 20.7g (including headshell))
Head Shell Terminal Lug : 1.2mmφ 4-pin terminal lug
Terminals
Audio Outputs : PHONO (Pin Jack) x 1, EARTH TERMINAL x 1
.
