Apogee : Symphony I/O MKII Pro Tools HD - Connect 16MP Apogee

Symphony I/O MKII Pro Tools HD Chassis with 16 Analog IN + 16 Mic Pre Amp + 16 AES/OP OUT
หมายเลขสินค้า : Symphony I/O MKII Pro Tools HD - Connect 16MP

ราคา 281,600.00 บาท

ราคาปกติ : 352,000.00 บาท

ประหยัดไป 70,400.00 บาท



เลือกจำนวน :

เลือกสี : สีดำ

  • สีดำ

  • ฟรี!

    ประกัน 1 ปี

  • ฟรี!

    ปรึกษาด้านเทคนิก


แชร์ไปยัง :

Symphony I/O MKII Pro Tools HD Chassis with 16 Analog IN + 16 Mic Pre Amp + 16 AES/OP OUT

ออดิโอ อินเตอร์เฟสรุ่น Apogee : Symphony I/O MKII Pro Tools HD - Connect 16MP โดยใช้เทคโนโลยีสัญญาณเสียงแบบดิจิตอลและอนาล็อก มาพร้อมกับช่องอินพุตแบบอนาล็อก 16 ช่องเชื่อมต่อแบบ 2-DSUB 25-pin ปรับ Gain ไมโครโฟนปรีแอมป์ได้ถึง 72dB มีช่องเอ้าท์พุตแบบอนาล็อก 16 ช่องเชื่อมต่อแบบ 2-DSUB 25-pin สามารถใช้งานได้ทั้งบน Windows และ MAC

Symphony I/O Mk II HD is designed for the Pro Tools HD user who needs a multi-channel audio interface with the best sound quality at an incredible cost per channel value. Whether using a Mac or PC based studio, Symphony I/O Mk II HD can connect directly to your Pro Tools HDX, Pro Tools HD Native or Pro Tools Core/Accel systems.

Symphony I/O Mk II HD can be utilized alongside or in place of Avid® or Digidesign® interfaces for Pro Tools HD. In fact, each I/O module installed in Symphony I/O Mk II HD appears and functions in Pro Tools HD the same if it were a separate Avid HD I/O interface, so set up is easy and you can take advantage of important Pro Tools features such as sample-accurate delay compensation.

A single Symphony I/O Mk II HD unit can have up to 32 simultaneous analog I/O, so you can have more channels with less rack gear.  Need even more channels?  You can utilize multiple units simultaneously, with one Symphony I/O Mk II HD per every Pro Tools HD port in your system. Calibrating your I/O is easy with Symphony I/O Mk II HD’s front panel touchscreen.

Legendary Sound Quality. Complete Flexibility. Incredible Value.
The Symphony I/O Mk II 8×8 MP and Symphony I/O Mk II 16 MP Connect series audio interfaces deliver Symphony-quality sound with robust, high-performance AD/DA converters and Apogee’s Advanced Step Gain Architecture™ mic preamps at unprecedented prices. Using cutting edge components and a simplified, optimized analog circuit design, Apogee engineers are able to place more AD/DA converters and mic preamps on a single module board. The result is a single Symphony I/O Mk II with up 32 mic preamps at an unprecedented price for Symphony Quality and an extremely competitive price for the market. With industry leading sound quality and scalable, high density I/O configurations for Dante®, Pro Tools® HD and Thunderbolt® systems, the Symphony Connect series is the ideal choice for broadcast, live sound, education, post, house of worship and recording studio facilities.

Superior Converter and Mic Preamp Design
Apogee engineers have made it their passion to improve every new flagship product by using the latest in electrical components and designing optimized circuitry that often exceeds the expectations of the component manufacturer. This is the Apogee Advantage. Symphony I/O Mk II is the culmination of this commitment and raises the bar on all Apogee products before it with even better audio clarity and sonic transparency.

Advanced Stepped Gain Architecture Mic Preamps
Apogee has taken a high-end design approach to the mic preamps in the Connect Series I/O modules to achieve the best performance of any audio interface. With Apogee’s Advanced Stepped Gain Architecture™ Connect Series interfaces feature a mic preamp circuit that is dynamically optimized at different gain settings to provide superior bandwidth, ultra low noise and nonexistent distortion across an expansive gain range of 0-72 dB.

The Advanced Stepped Gain Architecture™ functions a bit like a finely tuned race car with many gears: optimal circuit performance (low noise and low distortion) is maintained regardless of the gain required. Digitally-controlled analog switches “shift the gears” of the circuit at each gain setting to ensure the best sound and performance. Other mic pres struggle at the extremes of gain – they are essentially “two-gear” circuits.



Features :
  • Best performance of any multi-channel Pro Tools HD interface
  • Best cost per channel value of any Pro Tools HD interface solution
  • Connects directly to any Pro Tools HD system (Mac or PC)
  • Emulates Avid HD I/O interface, including sample-accurate delay compensation
  • Connect multiple units in a single system (1 unit per HD port)

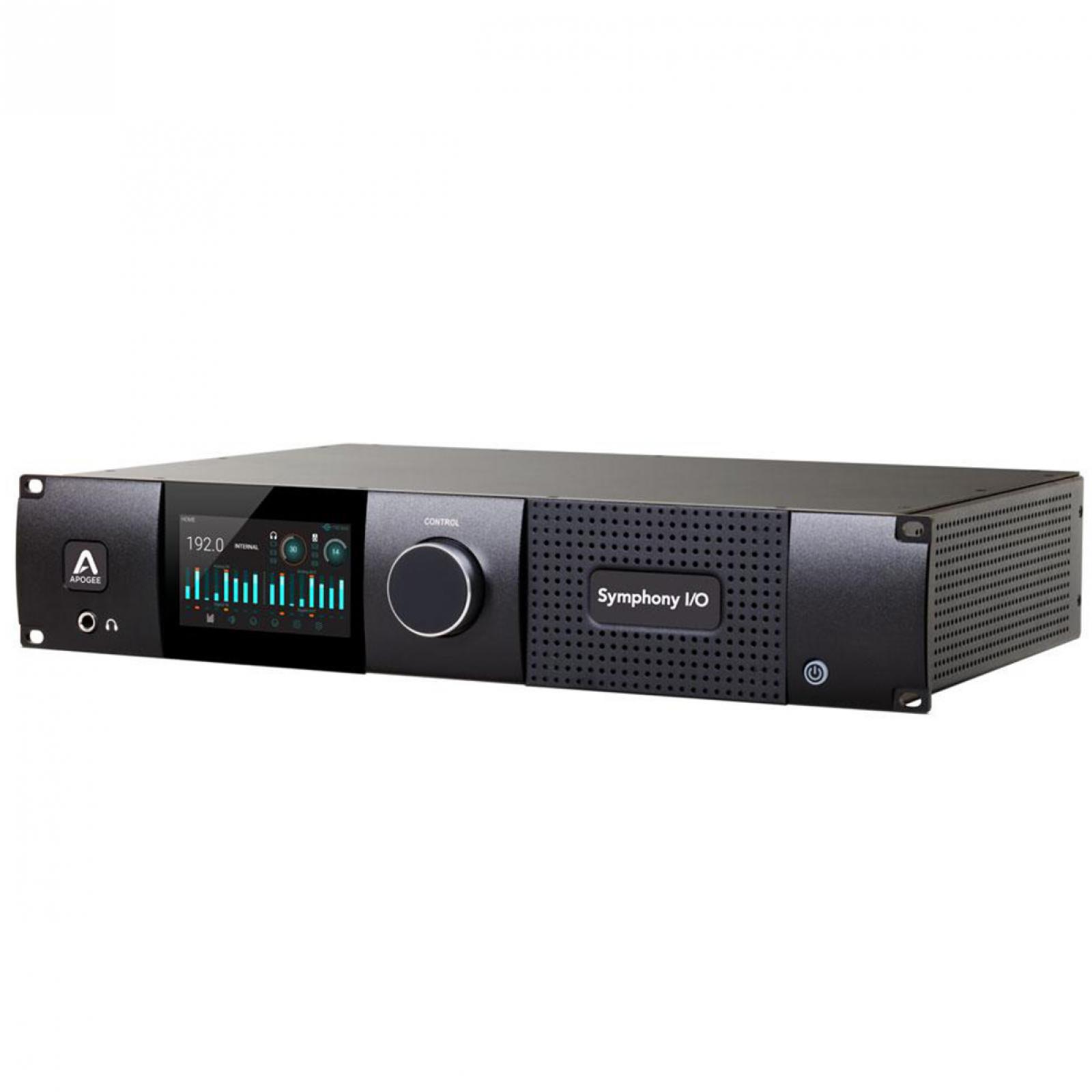

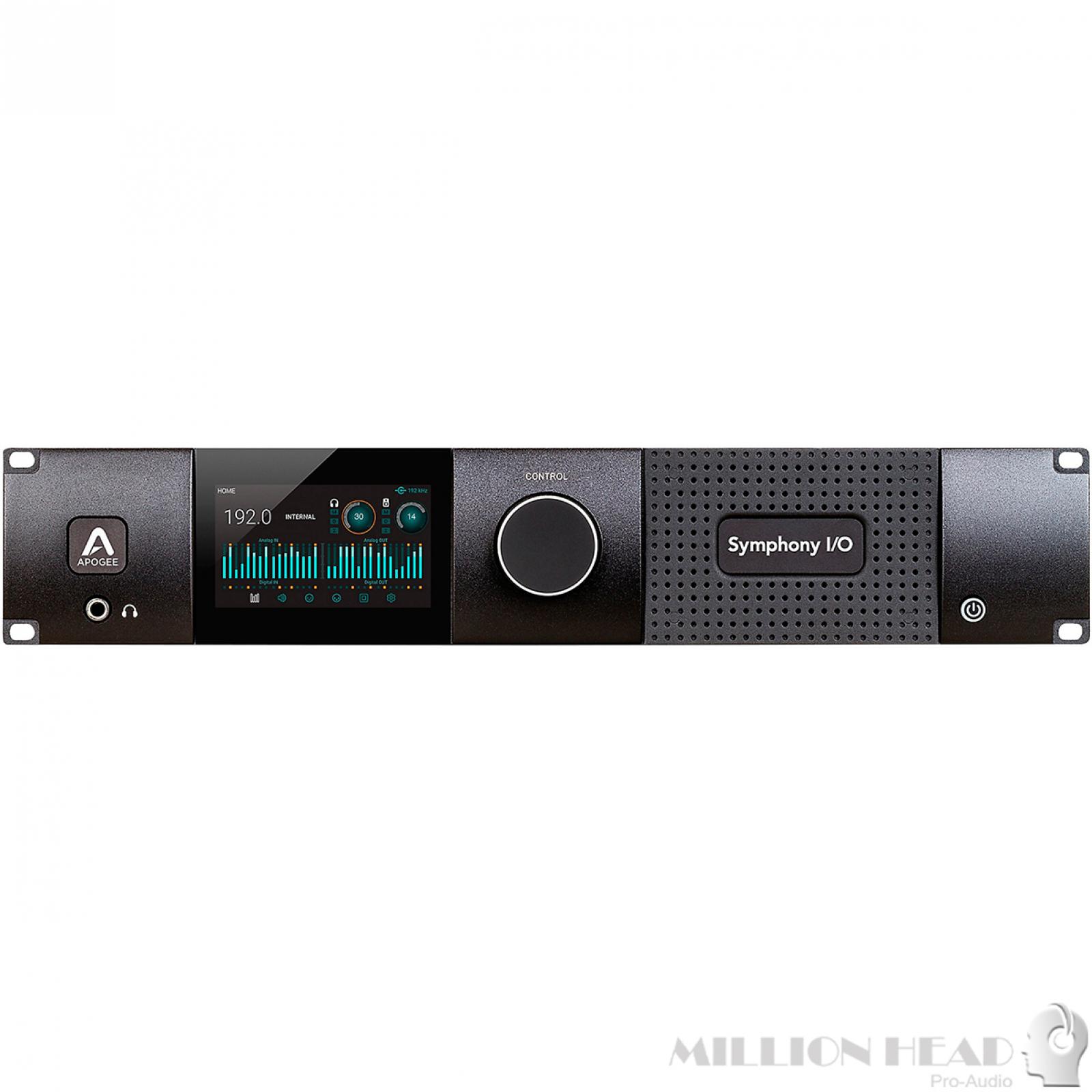

  • Easy I/O calibration with front panel touchscreen

Connect 16MP Spec :
  • Inputs :

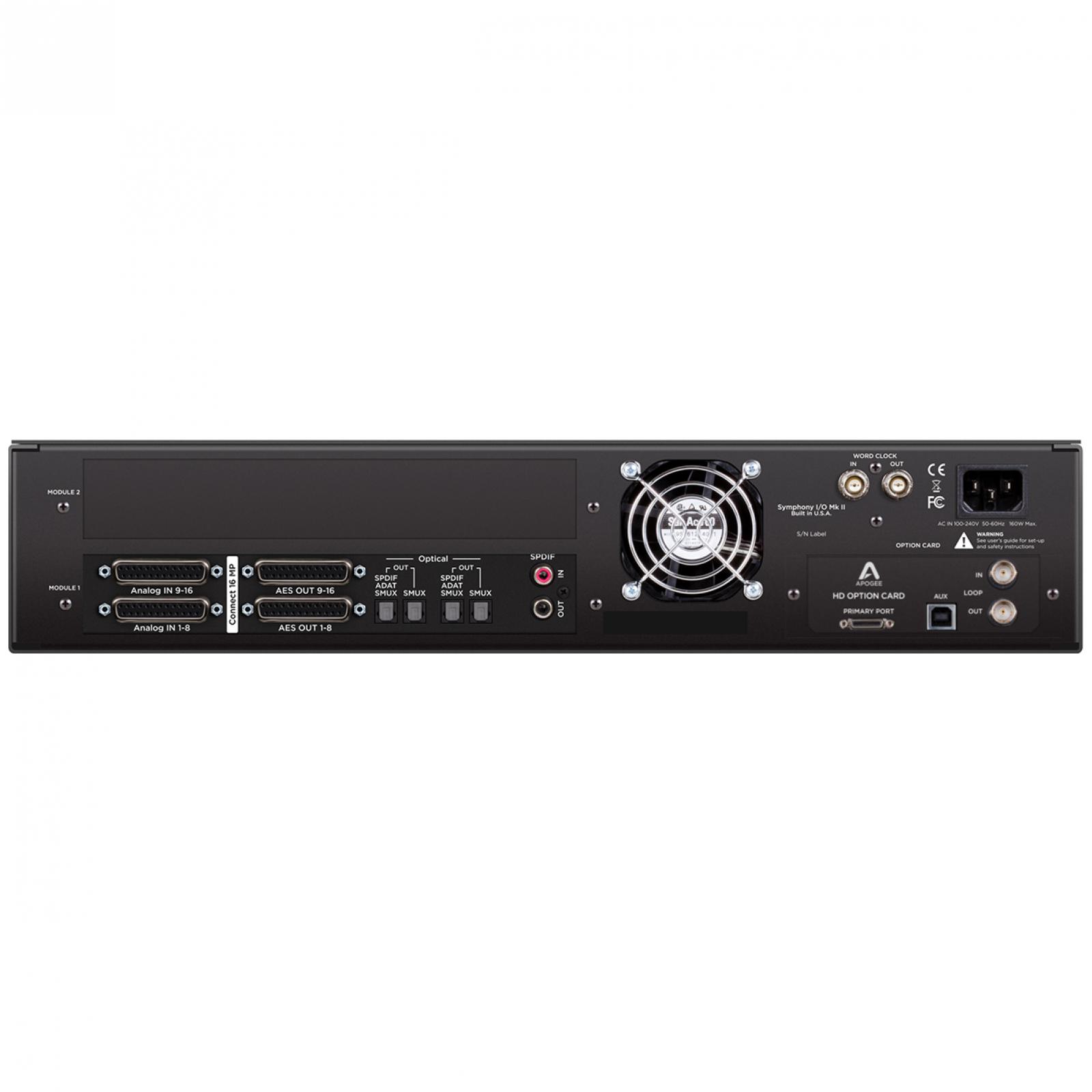

    • Analog IN: 16 balanced inputs on 2 DSUB 25-pin connectors
    • 16 microphone preamps with up to 72dB of gain Featuring Advanced Stepped Gain Architecture™
    • Coax IN: 2 channels of S/PDIF, up to 192 kHz
  • Outputs :
    • AES-EBU OUT: 16 outputs on DSUB 25-pin connector (192k single wide compatible)
    • Optical OUT: Supports ADAT, SMUX & S/PDIF
      • ADAT: 16 channels 44.1-48 kHz
      • SMUX: 16 channels 88.2-96 kHz
      • S/PDIF: 2 channels, up to 96 kHz
    • Coax OUT: 2 channels of S/PDIF, up to 192 kHz

Analog to Digital :

  • THD+N: -115dB @ 22dBu (0.00020%) unweighted
  • Dynamic range: 122dB A weighted
  • Maximum input levels:
    • +4dB setting: +24dBu
    • -10dB setting: +6dBV
  • Frequency response at 44.1kHz: 1-20,000 Hz (+/- 0.05dB)
  • Input impedance: 10K
Digital to Analog :
  • THD+N: -119dB @ 21dBu (0.00014%) unweighted
  • Dynamic Range: 126dB A weighted
  • Max output levels – ∞ to +24dBu
  • Frequency response at 44.1 kHz: dc to 20kHz (+/- 0.05dB)
  • Output impedance: 50 Ohm
  • Outputs are balanced through Apogee’s proprietary Perfect Symmetry Circuitry (PSC)
Headphone Output :
  • 1 stereo 1/4″ headphone output on front panel
  • THD+N:
    • -110dB @19dBu into 600 Ohm (=80mW)
    • -101dB @14dBu into 32 Ohm (=470mW)
  • Dynamic Range: 121db A weighted
  • Output: Apogee’s proprietary Constant Current Drive™ provides smooth frequency response with any headphones
Power :
  • 90-240VAC, 50-60Hz, 150W
Operating System :
  • Thunderbolt: Mac OS only 10.10 and above
  • HD: Any Mac or PC running Pro Tools HD 9 or greater
Software Compatibility :
  • Thunderbolt: Logic Pro or any Core Audio compatible application on Mac OS X
  • HD: Pro Tools HD 9 or greater
Package Contents :
  • Symphony I/O Mk II Interface
  • Power Cable
  • Quick Start Guide
  • Warranty Booklet
Symphony I/O Mk II Dimensions :
  • Inches: 17.75 (19 with Rack Ears) x 11.5 x 3.5
  • Centimeters: 45 (48.26 with Rack Ears) x 29.2 x 8.9
Packaging Dimensions :
  • Symphony I/O Chassis Box:
    • Inches: 22.875 x 17.75 x 9.25
    • Centimeters: 58.1 x 45.1 x 23.5
  • I/O Module Box:
    • Inches: 13.75 x 12.25 x 3.25
    • Centimeters: 34.9 x 31.1 x 8.3
