Classic FET-Style Compressor with Class-A Line Level Amplifier and Midas Transformers
หมายเลขสินค้า : 76-KT

ราคา 16,000.00 บาท

เลือกจำนวน :

เลือกสี : สีดำ

  • สีดำ

  • ฟรี!

    ประกัน 1 ปี

  • ฟรี!


แชร์ไปยัง :

Classic FET-Style Compressor with Class-A Line Level Amplifier and Midas Transformers
Klark Teknik 76-KT สร้างตามตำนานอย่าง 1176LN เวอร์ชัน D และ E ซึ่งเป็นคอมเพรสเซอร์ และ ลิมิเตอร์ ที่ได้รับความนิยมเป็นอย่างมาก
76-KT คือคอมเพรสเซอร์แบบ FET-Style มาพร้อมกับปุ่มปรับ Ratio 4 รูปแบบ คือ 4:1, 8:1, 12:1, 20:1 และยังมี VU Meter สไตล์วินเทจ ที่เหมือนกับตัวออริจินอล ใช้บอกระดับของเอาท์พุต หรือ gain reduction แล้วแต่โหมดที่จะเลือก

เท่านั้นยังไม่พอ 76-KT ยังมาพร้อมกับ line-level output amplifier คลาส A และทาง Klark Teknik ยังใส่ Midas input/output transformers เข้ามาเสริมความแกร่งให้กับเจ้า 76-KT อีกด้วย
Designed as an homage to the classic 1176LN, every effort was made to keep the 76-KT FET-Style Compressor true to the original D and E versions of the iconic signal processor. At the same time, we modernised the completely discrete signal path using hand-selected components and custom-engineered MIDAS input and output transformers – for the ultimate in pristine sonic performance.
MIDAS - The Legend in Sound Quality
Ever since its formation in the 1970s, Midas has had a long history of innovation and leadership in the world of audio mixing consoles. Employed by the most famous touring acts and installations worldwide, legendary Midas consoles such as the XL4 and Heritage H3000 quickly became industry standards.
Midas has earned their impeccable reputation due to their no-compromise approach for audio and build-quality and in particular for their Award-winning Mic Preamps, which are considered by industry experts as the industry’s best sounding designs. Building on this legacy, the XL8 and PRO Series of Live Mixing Systems continue this great heritage of Award-winning audio quality.
Klark Teknik is proud to incorporate Midas designed input and output transformers for the ultimate in high-quality audio reproduction in both live and studio environments. Find out more about Midas’ amazing legacy by visiting their extensive website.
Sublimely Easy to Operate
The compression ratio is selected by pushing any, or all, of the Ratio buttons located to the left of VU meter. Ratios available are: 4:1 for moderate compression; 8:1 for severe compression; 12:1 ratio for mild limiting; and 20:1 for hard limiting. Using the “All-Button” mode can be especially effective when applied to drums, bass, guitar, and room mics – or for more aggressive “in your face” vocals.
Attack & Release
76-KT’s Attack knob adjusts the amount of time it takes the compressor to respond to audio that exceeds the threshold. The response time is slower at the fully counterclockwise position and faster when turned clockwise. The Release knob adjusts how long the compressor remains engaged after the incoming audio falls below the threshold. The response time is also slower at the fully counterclockwise position and faster when adjusted clockwise.

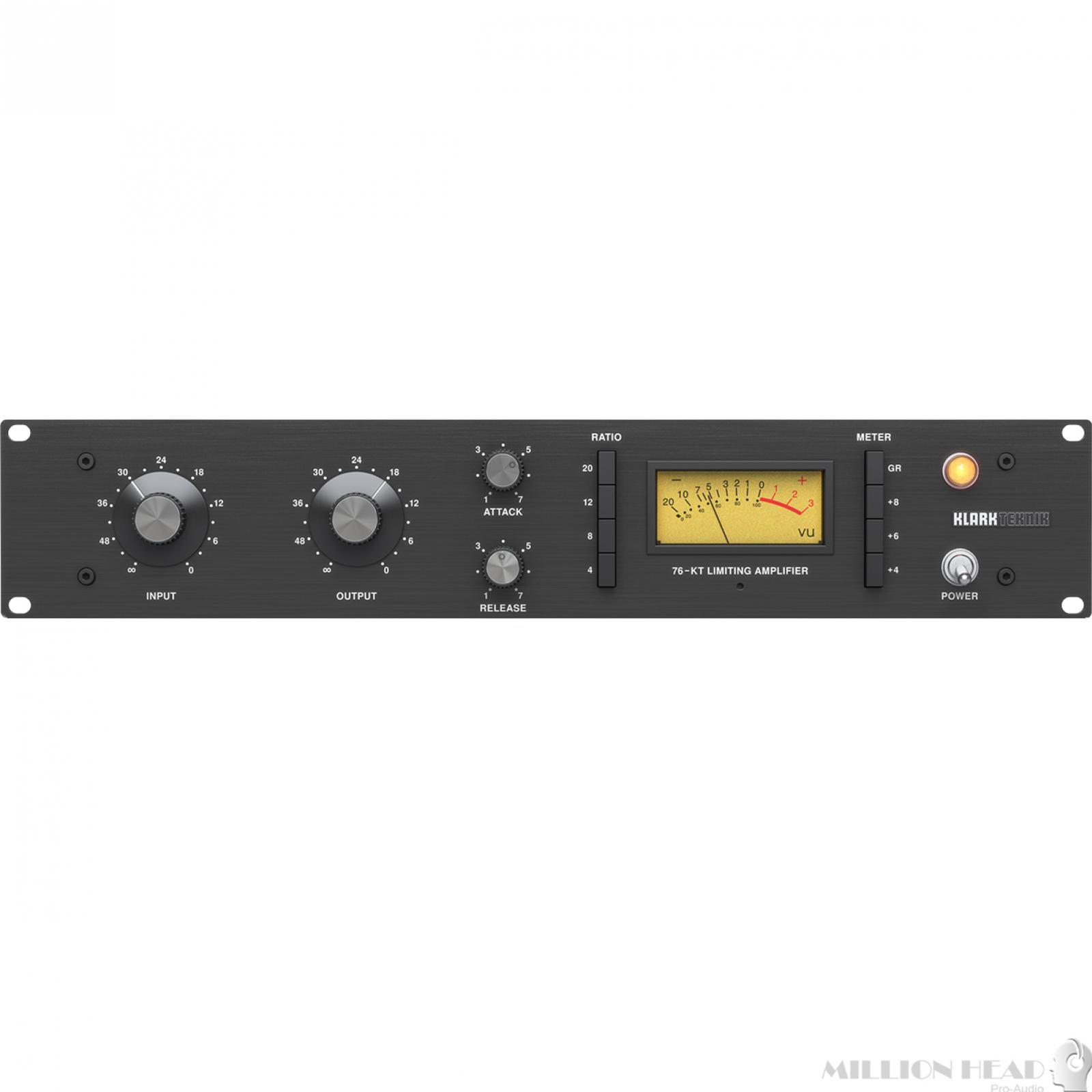

Vintage Style VU Meter
In keeping with the design of the original processor, the 76-KT features an illuminated, vintage-style VU meter for visual confirmation of gain reduction (GR) and output levels. A meter reading of 0 corresponds to an output level of +4, +6 or +8 dBm, depending on which button is engaged.
Built for the Road
Featuring a rugged steel 2U rackmount enclosure, the 76-KT is designed for the rigours of live concert touring. Premium Neutrik XLR connectors are used to ensure reliable audio connections, night after night.
Auto-Ranging Universal Switch-Mode Power Supply
76-KT features a universal power supply, which is auto-voltage sensing for use on a worldwide basis.

Features :
  • Classic FET-style compressor modeled after iconic 1176LN*, D and E Revisions
  • Completely discrete signal path
  • Class-A line-level output amplifier
  • Custom-built, Midas input and output transformers
  • Push button selection of compression ratios: 4:1, 8:1, 12:1, 20:1
  • Ultra-fast attack time: 20 to 800 microseconds
  • Adjustable release time: 80 to 700 milliseconds
  • Vintage-style meter features gain reduction and output
  • Transformer balanced inputs and outputs on Neutrik* XLR connectors
  • Rugged 2U rackmount chassis for durability in portable applications
  • Auto-ranging universal switch-mode power supply
  • 10-Year Warranty Program*
  • Designed and engineered in the U.K.

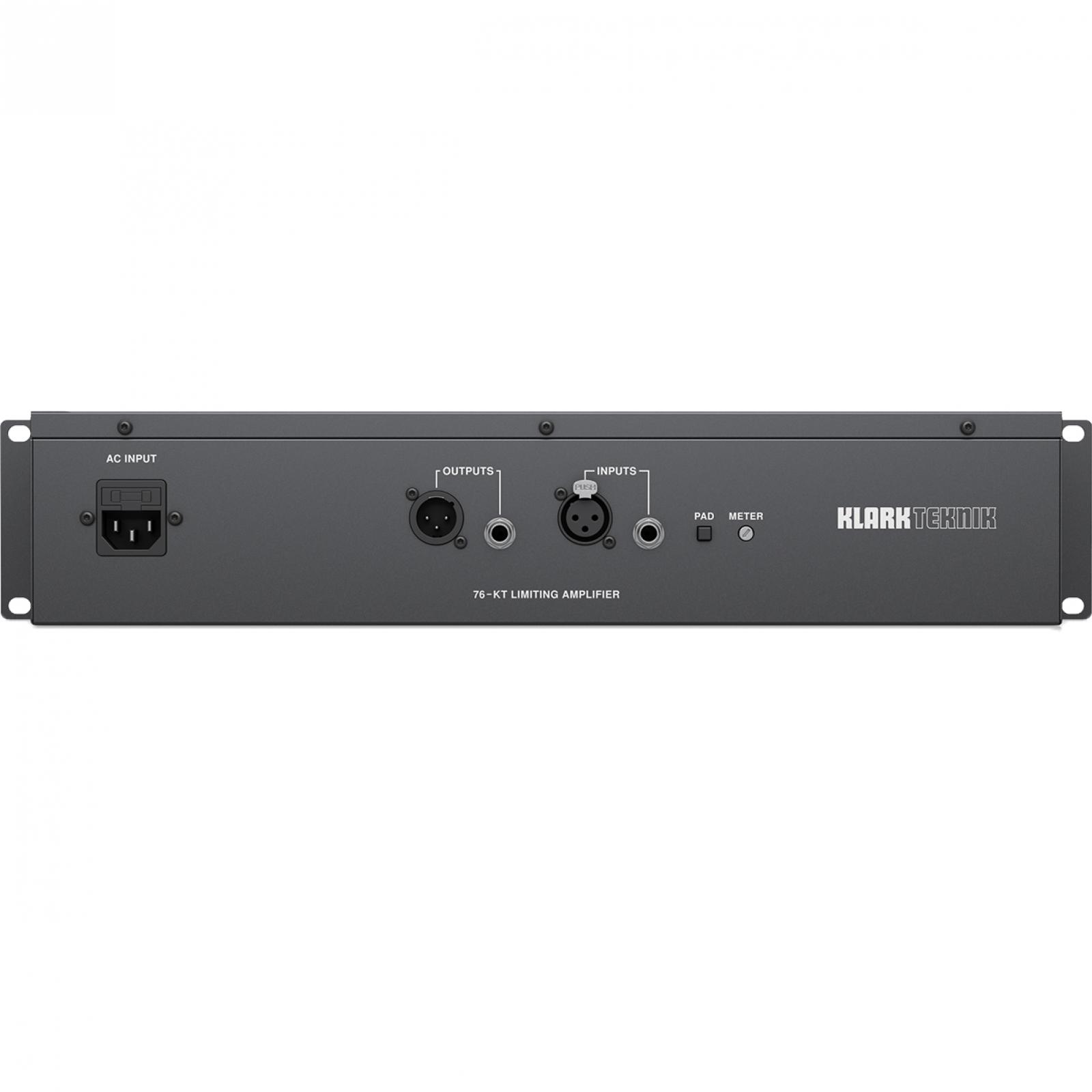

Audio Input
  • Type XLR, 1/4" TRS, transformer balanced
  • Impedance >600 Ω, balanced and unbalanced
  • Max. input level +30 dBu
  • Pad switch -20 dB typical
Audio Output
  • Type XLR, 1/4" TRS, transformer balanced
  • Impedance 105 Ω, balanced and unbalanced
  • Max. output level +25 dBu
System Specifications
  • Frequency response 20 Hz to 20 kHz, ±1 dB
  • S/N ratio 80 dB @ +4 dBu In
  • Distortion (THD+N) 0.15% typical
  • Attack time 25 to 760 μs, adjustable
  • Release time 80 to 670 ms, adjustable
  • Ratio settings 20:1, 12:1, 8:1, 4:1
  • Meter settings Gain reduction, +8/6/4 dBu
Power Supply
  • Mains voltage 100 – 240 V~, 50/60 Hz
  • Power consumption 10 W
  • Fuse T1AH 250V
  • Mains connection Standard IEC receptacle
  • Dimensions (H x W x D) 88 x 483 x 159 mm
  • Weight 2.8 kg (6.2 lbs)
